30 QC-300 Series User’s Guide

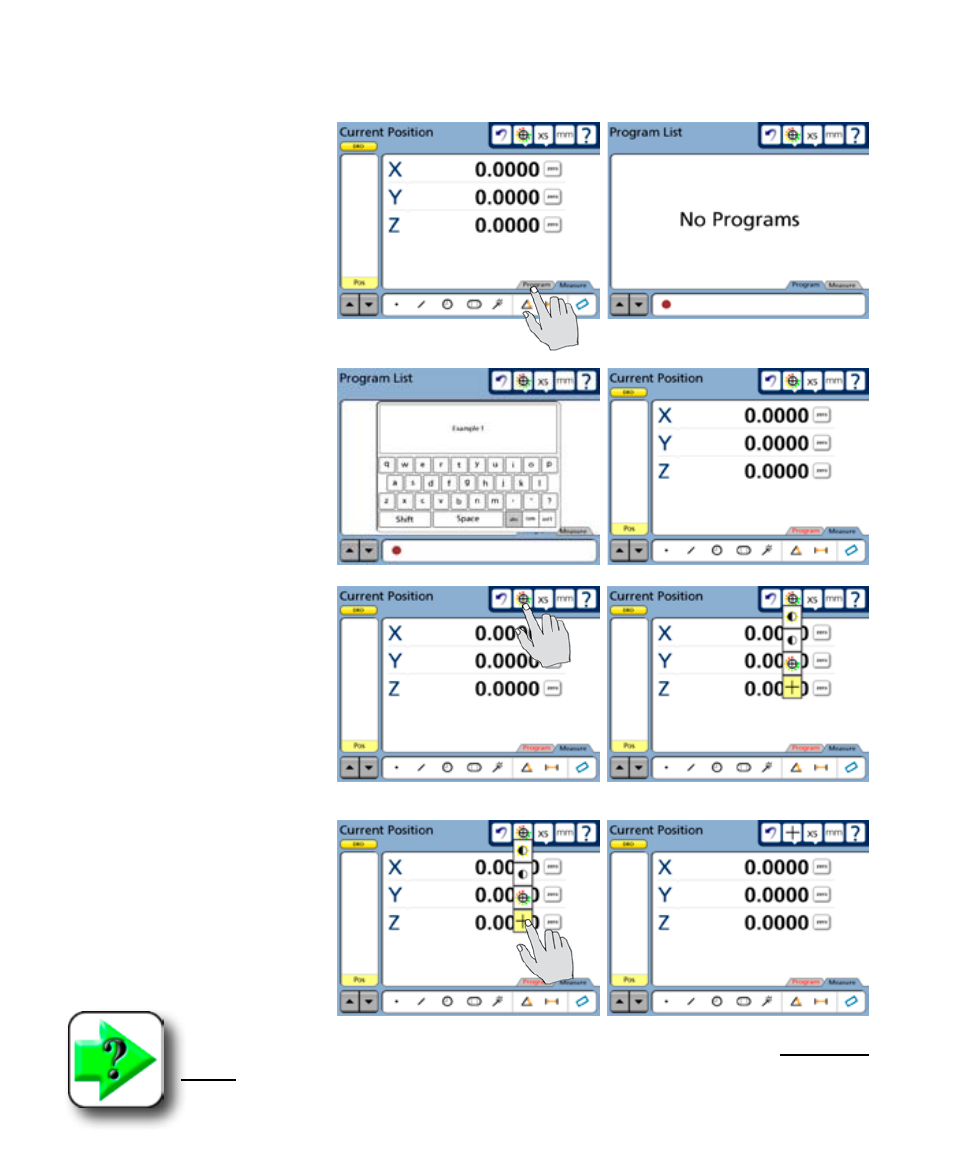

Start recording a program
To record the following activities
as a program:
1 Touch the Program tab to dis-
play the program screen and then
touch the Record icon. The text
entry screen will be displayed.
2 Enter a program title and
press the Finish key. The DRO
will be displayed. The measure
icons will also be displayed and
the Program tab will be shown in
red to indicate that programming
is in progress.
Select a probe
To select a new probe:
1 Select a new probe type by
touching the Probe button. The
probe choices will be shown in
the probe drop-down list.
2 Touch the desired probe
button. The probe drop-down
list will close and the new probe
button will be displayed. In this
example the straight crosshair
probe is selected.
NOTE
More information regarding preparing and using probes is contained in Chapter 5:
Probes.
