Setup
2 Make sure the Enabled choice field is toggled to Off, and erase any existing data in all the data fields
using the methods described earlier in this chapter. Station 0 should be displayed
with zeros in the Standard, Observed and MZ Offset fields when this step is com-
plete.
3 The length of the calibration standard should cover as much of the axis range of motion as possible.
Measure the standard and enter the Standard (certified) and Observed (measured)
values into the corresponding data fields.
4 Touch the Enabled choice field to toggle error correction On.

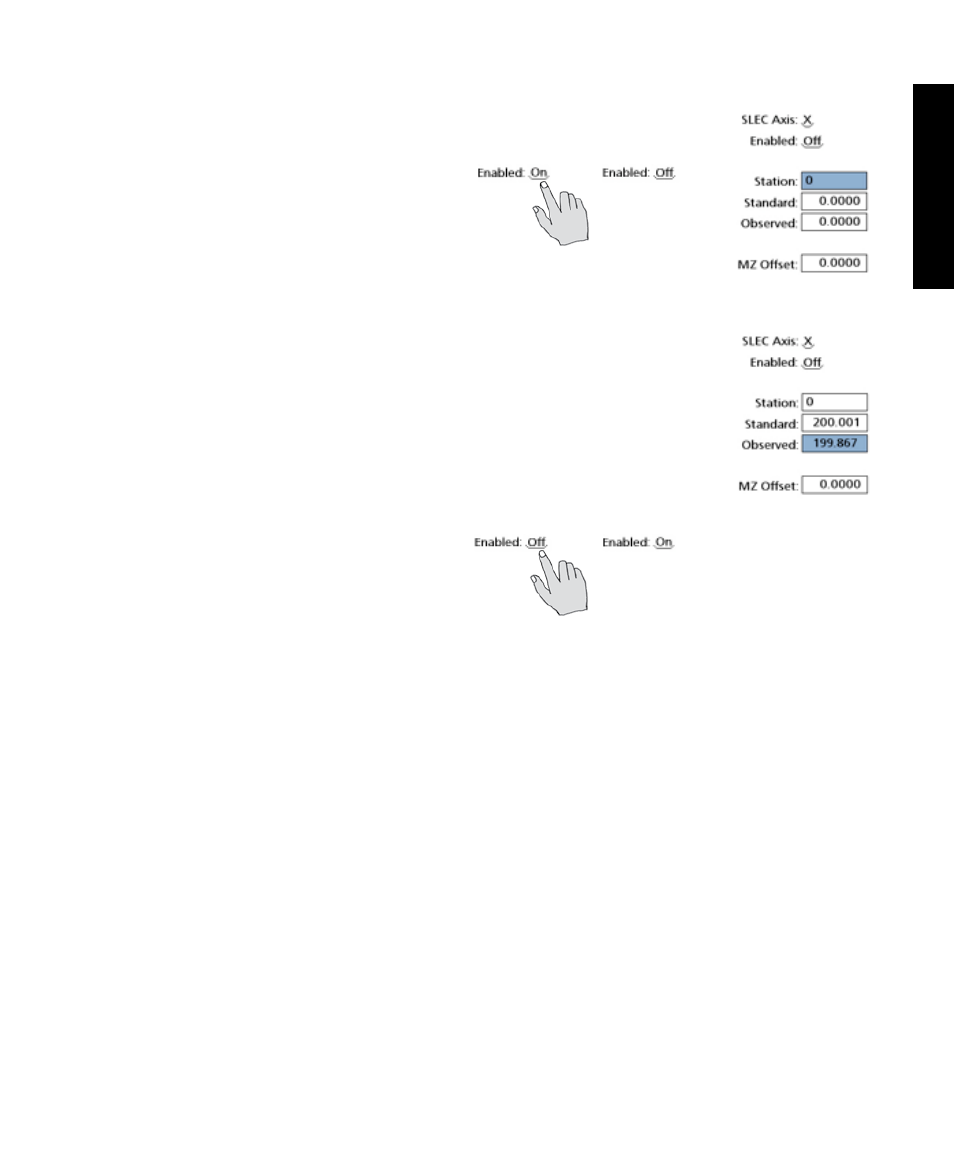

SLEC Screen
