68 QC-300 Series User’s Guide
Probing distances
Two probed points are required
to measure a distance.

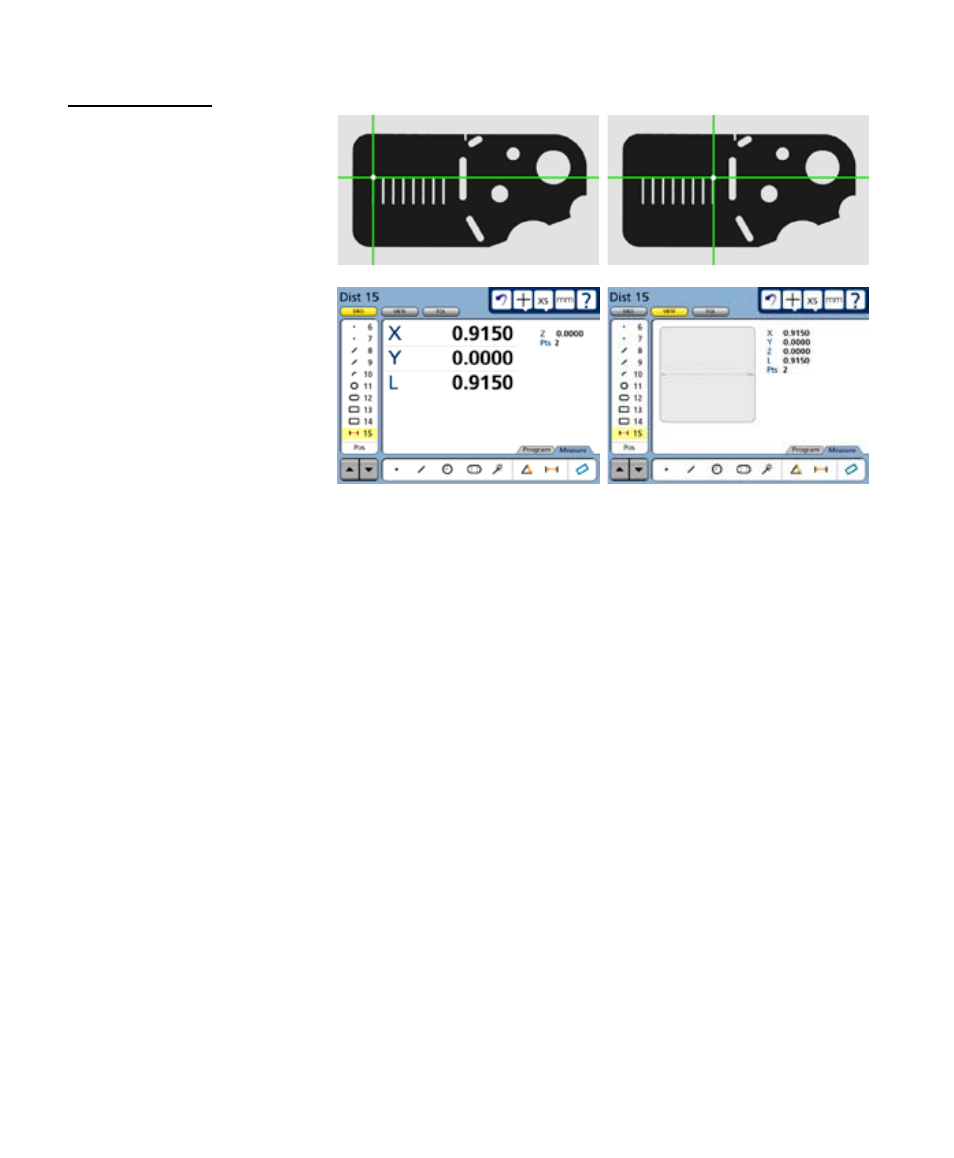

Measurement results are shown
in the Feature list, View window,
and the DRO window.
The View window shows the fea-
ture and the points used to define
it. The DRO window shows the
number of points used, the X and
Y axis displacements and the dis-
tance vector between features.
