40 QC-300 Series User’s Guide
Stop program recording
To end a recording session:

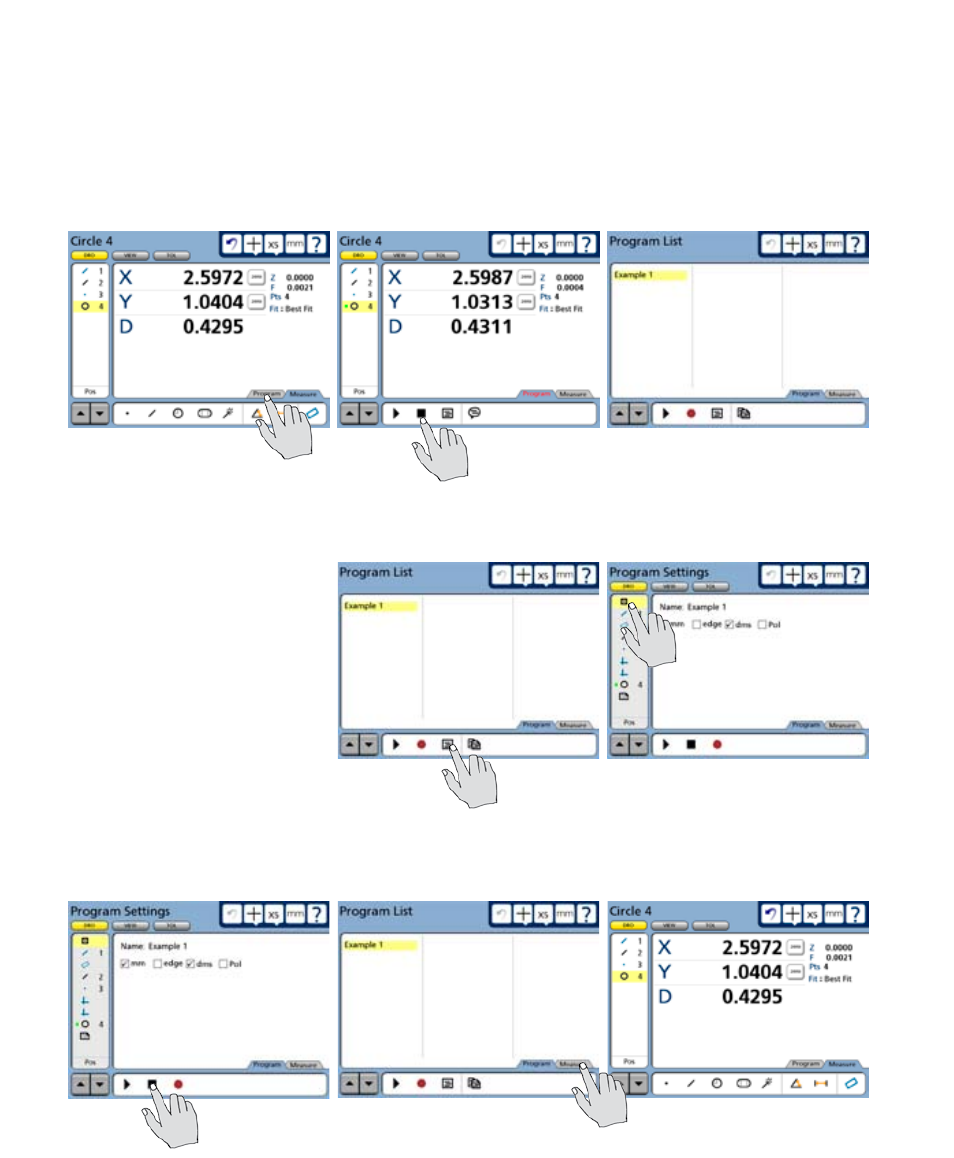

1 Touch the Program tab to display the programming tools, and then touch the Stop icon to stop record-
ing the program. The program title will be shown on the left side of the screen.
The program is now saved and can be edited or run on new parts.
2 Touch the Edit icon button to
review or modify program steps.
The list of steps will be shown in
the feature list. Select a step to
review its contents.
3 Touch the Stop icon button and then the Measure tab to leave the record mode and return to the mea-
sure mode of operation.
