Then measure the largest hole in
the QC Quickie slide. Details of
performing circle measurements
are described in Chapter 6: Mea-
suring.
Apply a tolerance
Tolerance operations are described in Chapter 7: Tolerancing. In this example, a true position tolerance is
applied to the hole feature measured in the last step.
Touch the Tol button to display the Tolerance screen, apply the true position tolerance and touch the DRO
button to return to the DRO screen.
Report results
Measurement results can be printed over the USB port or transmitted to a computer over the RS232 se-
rial port. Parameters governing reports and data transmissions are configured in the Print setup screen
described in Chapter 9: Communication, and in Chapter 10: Setup.
Result reporting is included in a program by simply pressing the Print key while in record-
ing a program.
Creating a Program

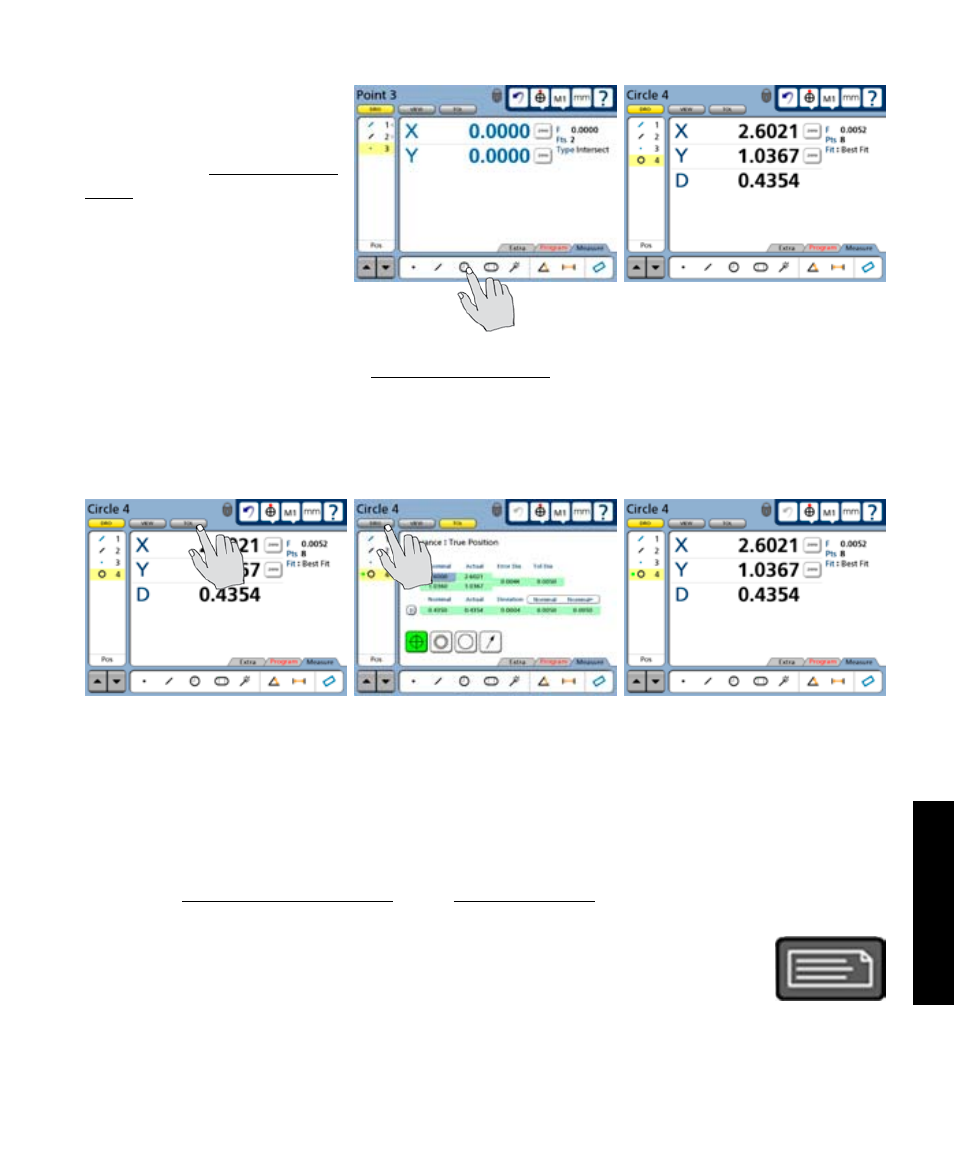

Touch the Tol button... apply the tolerance and touch the
DRO button...
to return to the DRO screen
Measurement data is displayed
