100 QC-300 Series User’s Guide
Distances constructed from a point and a circle
Up to three distance constructions can be made from a point to a circle:
• Distance between features:
The distance between the point and circle center
• Nearest distance:
The distance between the point and nearest circle circumference
• Farthest distance:
The distance between the point and farthest circle circumference
To construct a distance between a point and a circle:
1 Touch the Measure Distance icon
2 Touch the point feature
3 Press the Enter key
4 Touch the circle feature
5 Press the Enter key
6 Press the Finish key
The distance between the point and circle center will be constructed. Alternative distance constructions can
be selected from the drop-down menu in the DRO window.

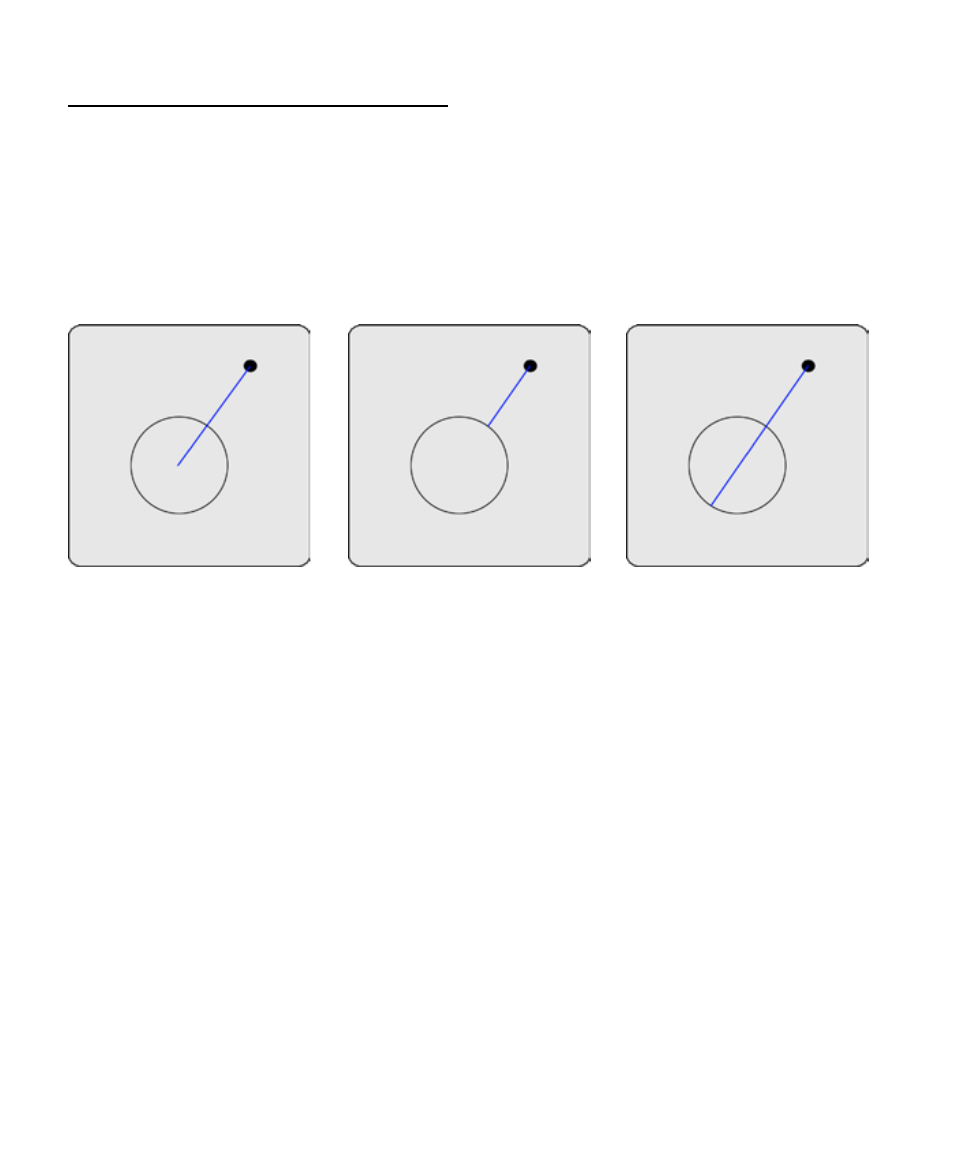

Distance between features Nearest distance Farthest distance
