Quick Start
Apply tolerances to a feature measurement
In this example, a true position tolerance will be applied to the circle measurement. To apply a tolerance:

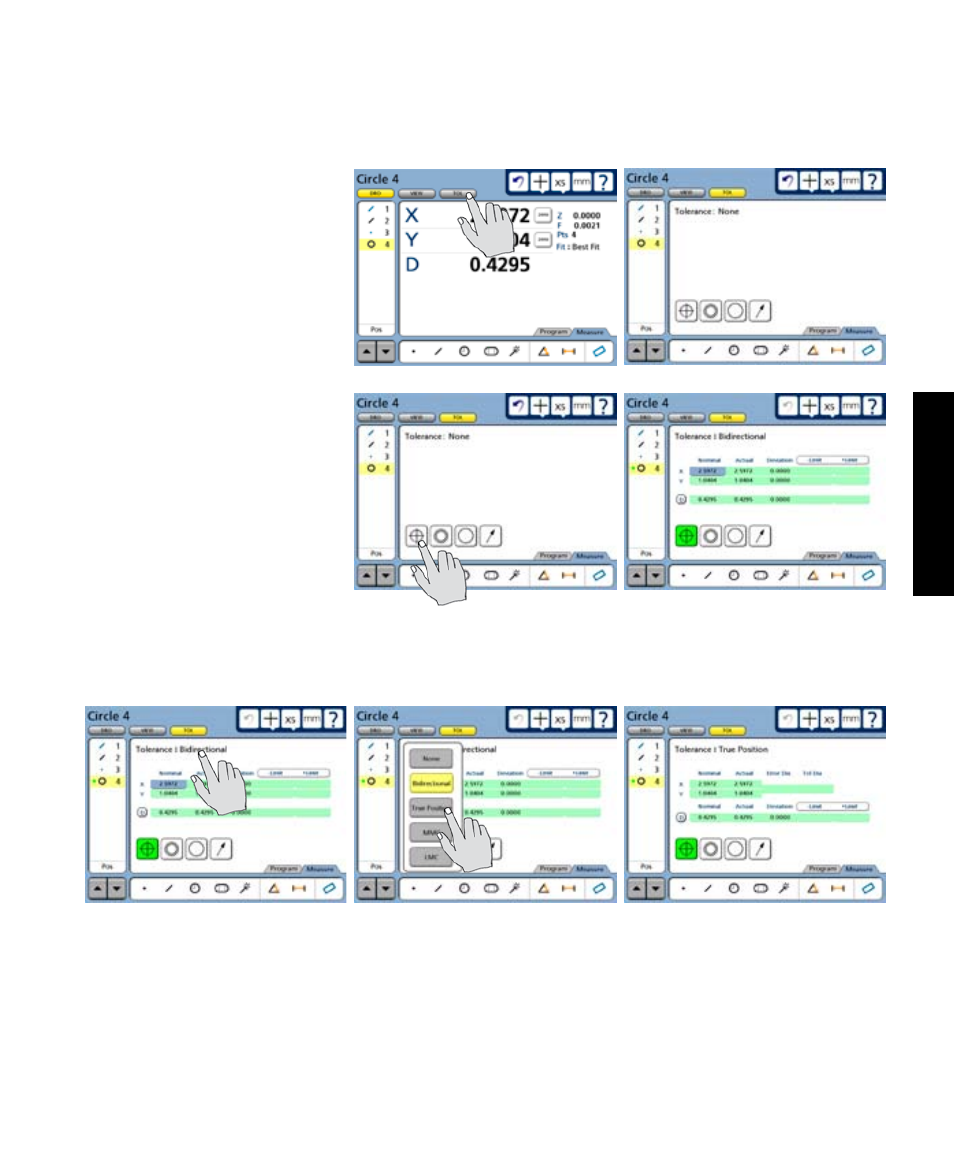

1 With the circle feature select-
ed, touch the Tol screen button to
display the tolerance screen.
2 Touch the desired toler-
ance type icon button to select a
tolerance type. In this example,
the position tolerance type is se-
lected.
4 Select a specific position tolerance. Touch the Tolerance menu title and then select the specific toler-
ance from the drop-down menu. The true position tolerance is selected in this example.
Applying Tolerances
