User Interface

Accessing programming functions

Programming functions are accessed from the Program tab. Touch the Program tab to display a list of

programs and programming tools. Details regarding programming and the use of programming tools are

provided in Chapter 8: Programming.

Touch a program tool icon to play, record, edit, copy, stop or add a user message to a measurement pro-

gram. In the Edit mode, completed program steps are shown in the feature list.

Run a program Run a program

Record a program

Stop recording

Open edit mode

Copy a program

Include user message

Select a drive Goto here: Used to define locations for

CNC program moves

Copy to drive

Additional CNC functions that can be included in programs are contained in the Extra tab shown later in

this chapter, in Chapter 6: Programming and in Chapter 10: Setup.

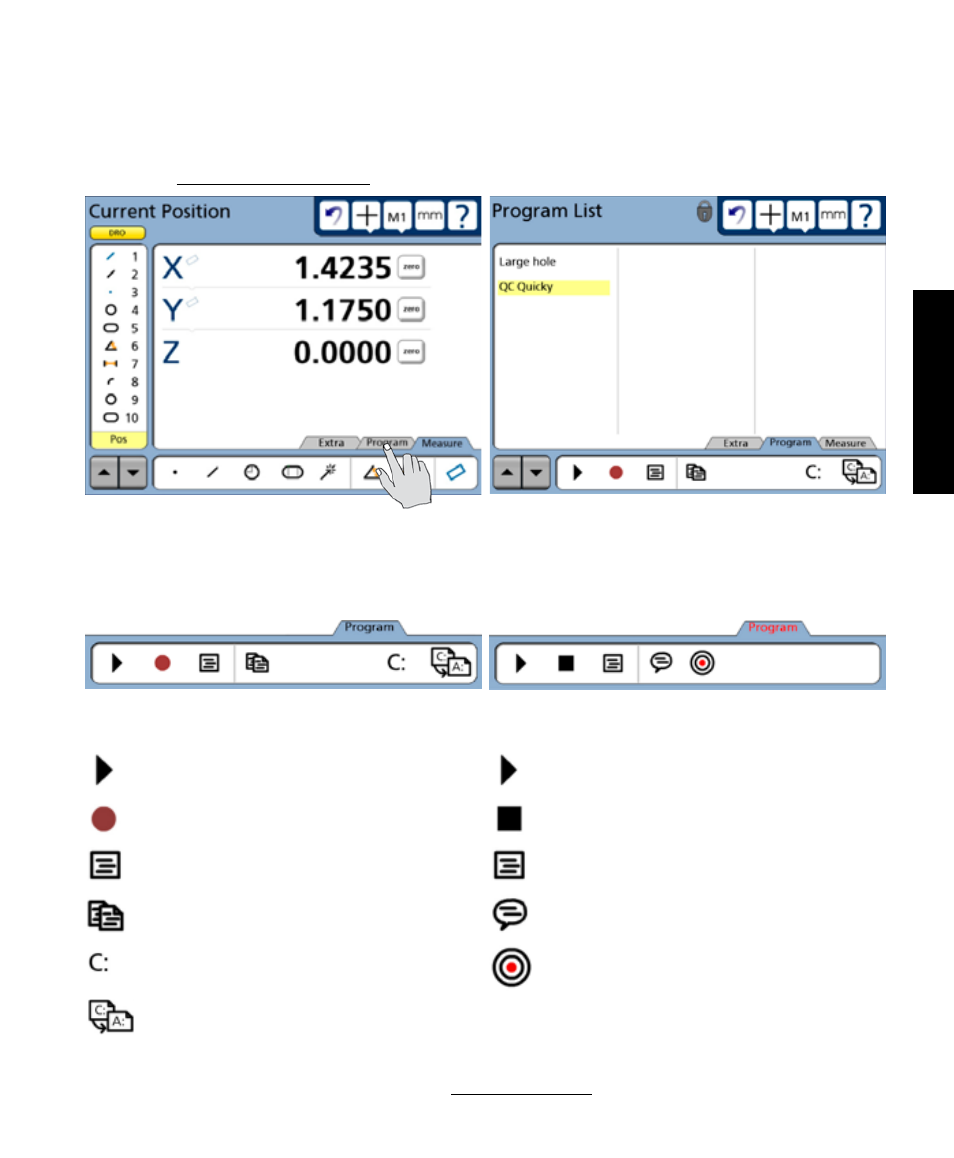

Touch the Program tab...

to display a list of programs and programming tools

Measurement Functions

Programming tools shown before recording

Programming tools shown during recording
