16 QC-300 Series User’s Guide
Sending data to a computer from the Extra tab
Touch a data icon shown in the Extra tab to send the corresponding data element for the current position or
selected feature to a computer over the serial port. Touch the Extra tab to display the data choices.
NOTE
The Extra tab is configured in the Display setup screen. Please refer to
Chapter 10: Setup for details.
The data sent to the serial port always corresponds to the information displayed in the DRO screen. The
information types are shown in the upper-left corner of the screen and are:
• Current position (no feature selected)
• Feature measurement (feature selected)
NOTE
Touching an
icon for an inap-
propriate data
type produces no
result. For example, touching
the diameter icon when a circle
feature is selected in the feature
list sends diameter data to the
serial port, however, touching
the angle icon when a circle is
selected produces no result.

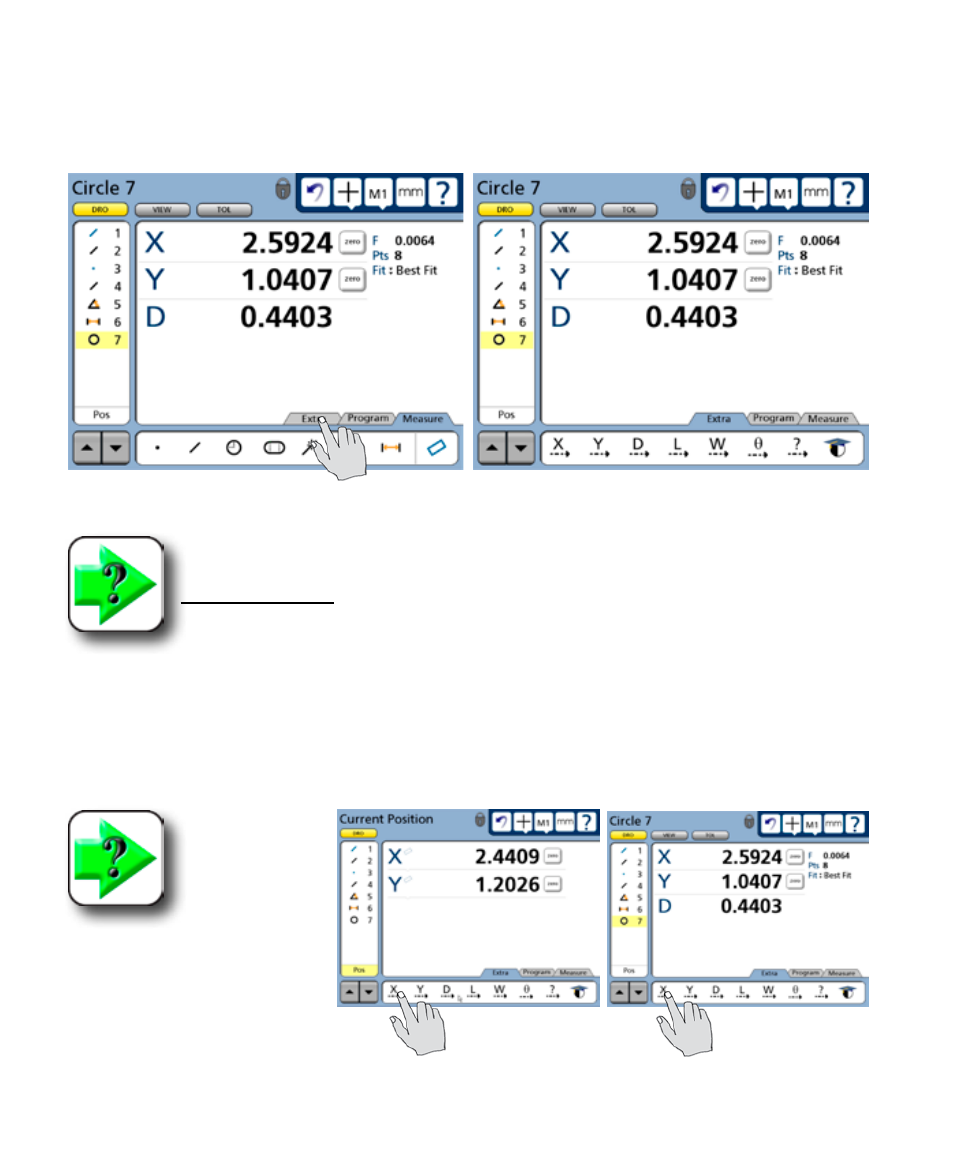

Touch the Extra tab... to display the data choice icons
Send current position data... or send feature measurement data
