User Interface
Touch the desired probe type to select it.
Magnification
The Magnification function provides access to a drop down list of available measurement magnifications.
Touching the Magnification button shows the list of available magnifications. Touch the desired magnifi-
cation to select it.
Unit of measure
The Unit of measure function
toggles the linear unit of mea-
sure between metric and English.
Touch the mm/in button to toggle
the units of measure.

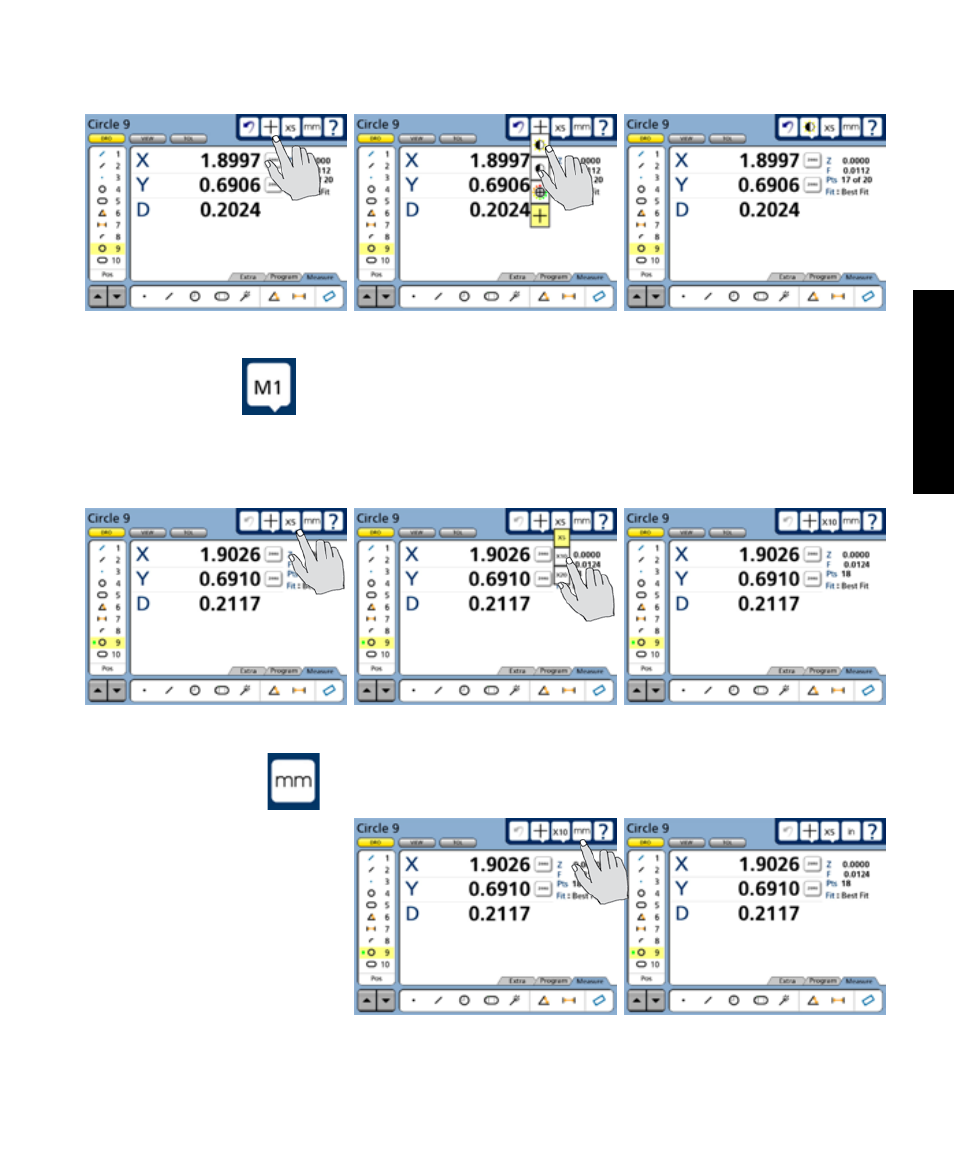

Touch the Magnification button... to select a magnification... from the drop-down list
Touch the Probe button... to select a probe type... from the drop-down list
System Functions
Touch the mm/in button... to change the linear unit of measure
