Quick Start
Measure a feature
In this example, the largest of the three holes of the QC Quickie slide will be measured using the crosshair
probe.
NOTES
More information regarding feature measurements and constructions is contained in
Chapter 6: Measuring. More information regarding the use of crosshair or optional
edge detection probes is contained in Chapter 5: Probes.

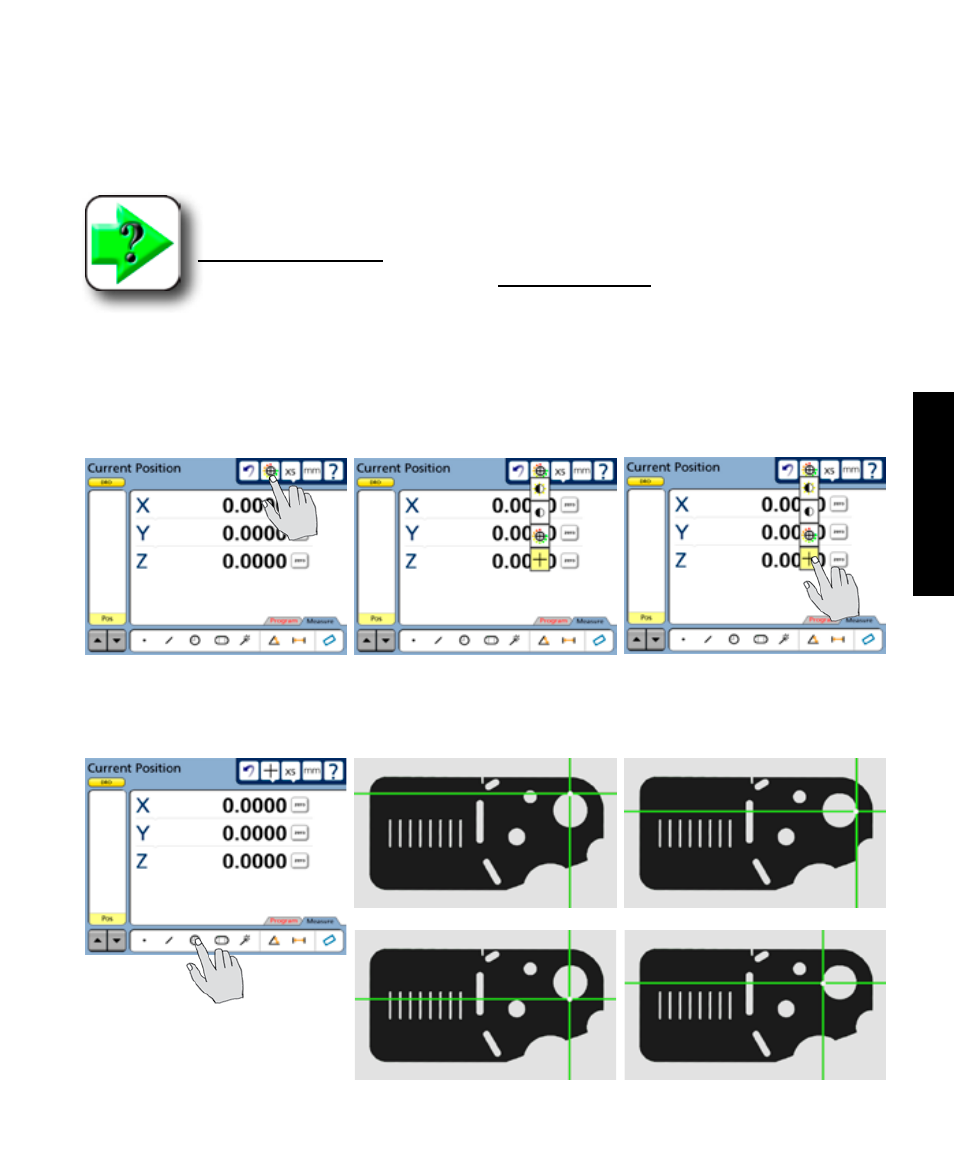

Measuring a circle
To measure a circle using crosshairs:
1 Select the manual crosshair probe.
2 Touch the measure circle icon and probe a minimum of three points evenly distributed around the
perimeter of the circle. Four points were probed in this example.
Measuring a Feature
