190 QC-300 Series User’s Guide

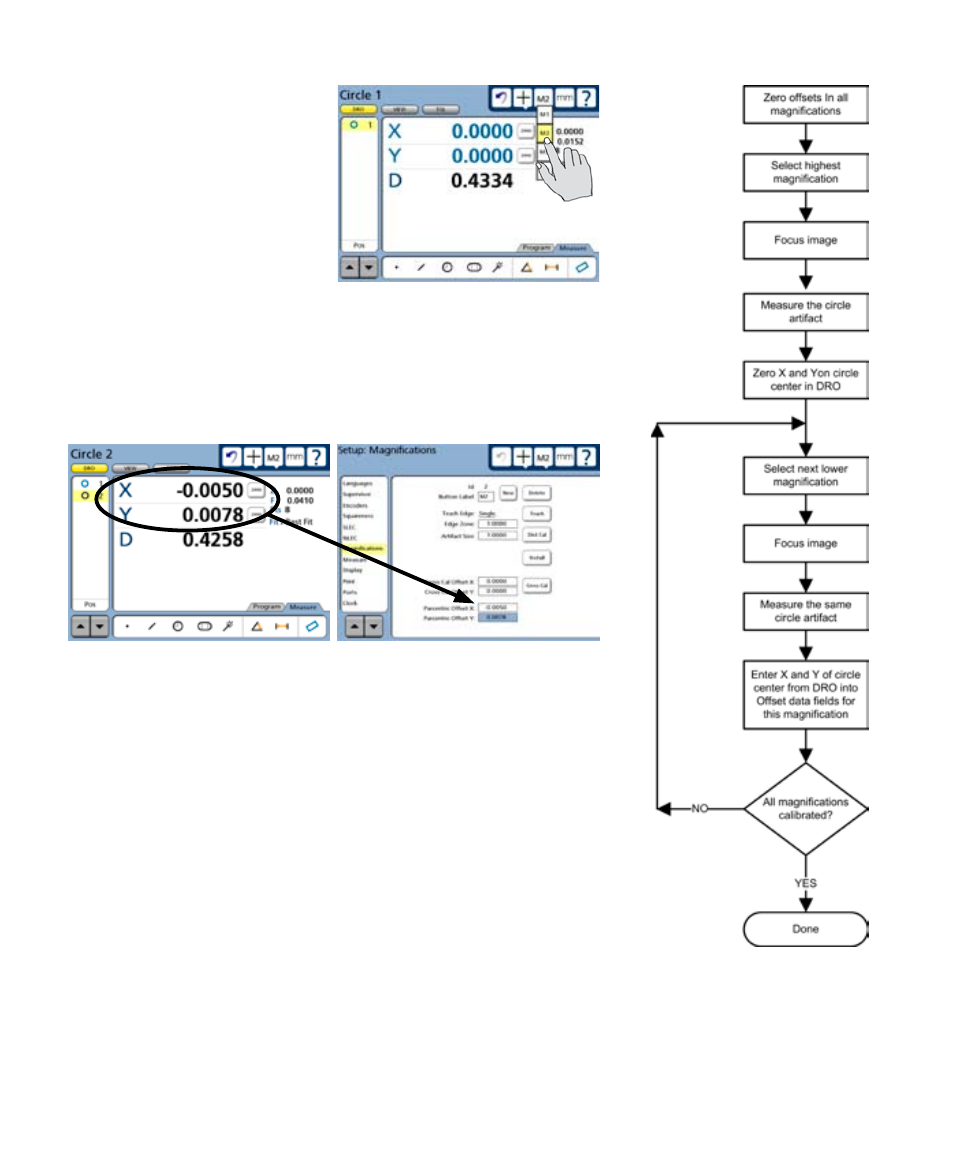

5 Select the next lower mag-
nification. This is M2 in this
example.
6 Focus the circle artifact image at the new magnification.
7 Measure the circle artifact at the new magnification, and enter the X
and Y positions of the new circle feature shown in the DRO into the Par-
centric Offset X and Y fields of the Magnification setup screen.
8 Repeat steps 5 through 7 for the remaining magnifications.
Enter the X and Y values of the
circle at the new magnification...
into the X and Y Parcentric Offset
data fields
