User Interface
The Extra tab is typically used to send abbreviated data to the serial port since complete reports or screens
of data can be sent using the Print function described in Chapter 10: Setup. However, a complete data set
can be sent for a feature from the Extra tab by touching the required series of icons in succession.
The transmission of data to the serial port from the Extra tab can be included in programs, like any other
measurement, tolerancing or reporting activity.

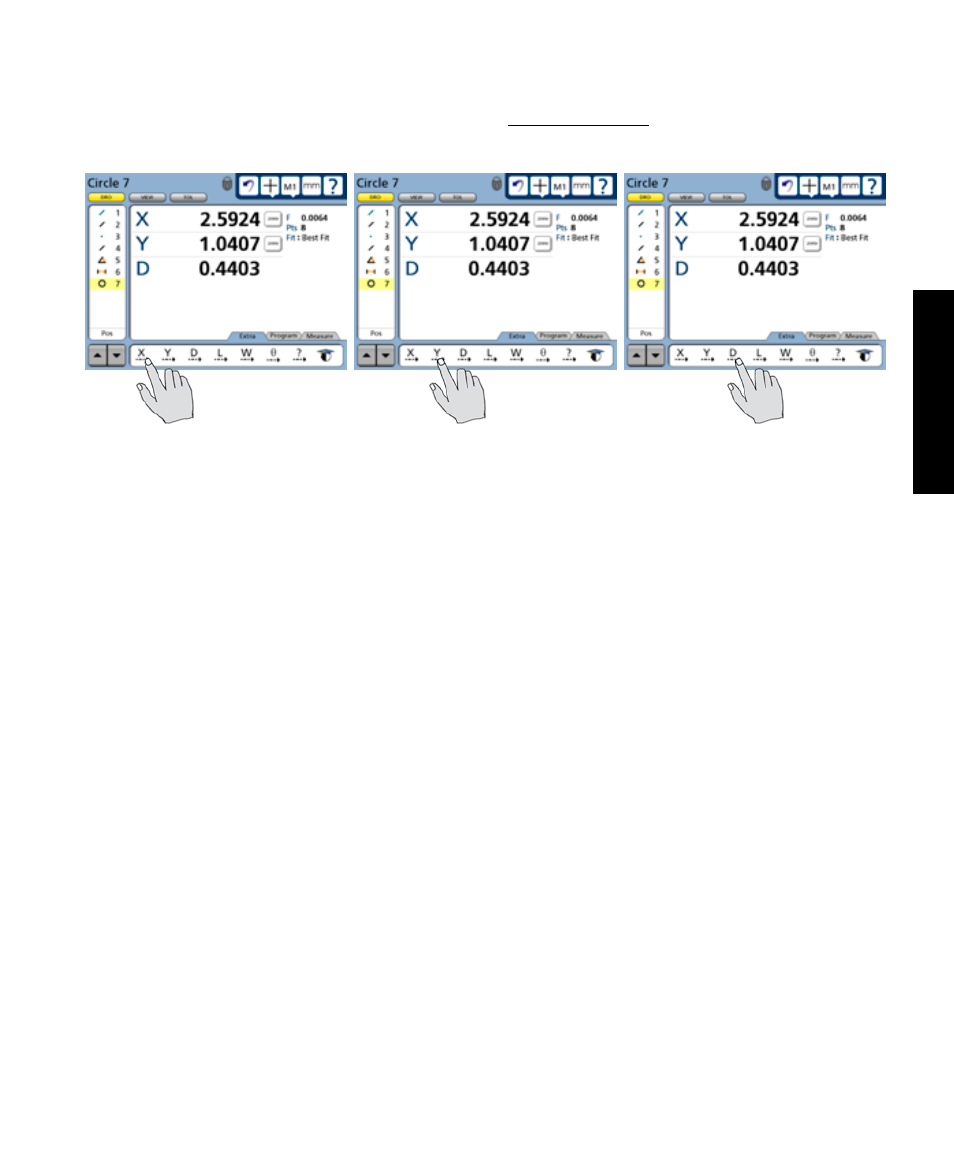

A complete data set for the selected circle is sent to a computer by touching each data icon in succession
Measurement Functions
