Measuring
Creating features
Features can be created by entering information that describes feature size and position. Information can
be entered in metric or English units of measure.
The following feature types can be created:
• Points • Lines • Distances • Rectangles
• Circles • Arcs • Slots
Creating a point
To create a point:

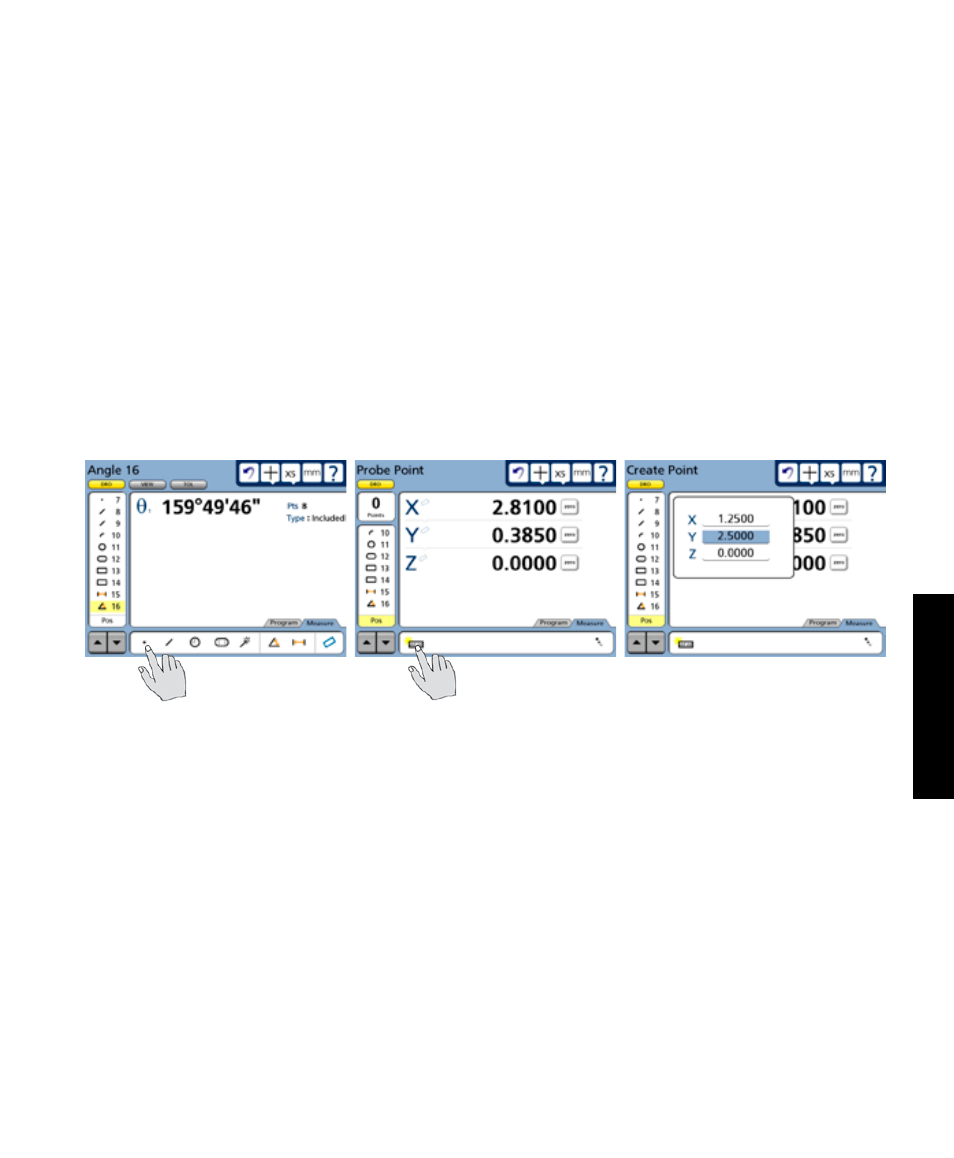

1 Touch the measure point icon, and then touch the data entry icon. The data entry box will be dis-
played.
2 Enter the feature data in the fields provided and press Finish.
Creating Features
