Measuring
Line constructions
Lines can be constructed from:
• Points • Angles
• Lines • Arcs
• Distances • Slots
• Circles
Line constructed from a line
A duplicate feature can be useful when it becomes desirable to perform
new operations with the original while retaining a copy. To construct a
line from an existing line:
1 Touch the Measure Line icon
2 Touch the desired line in the Features list
3 Press the Enter key
4 Press the Finish key

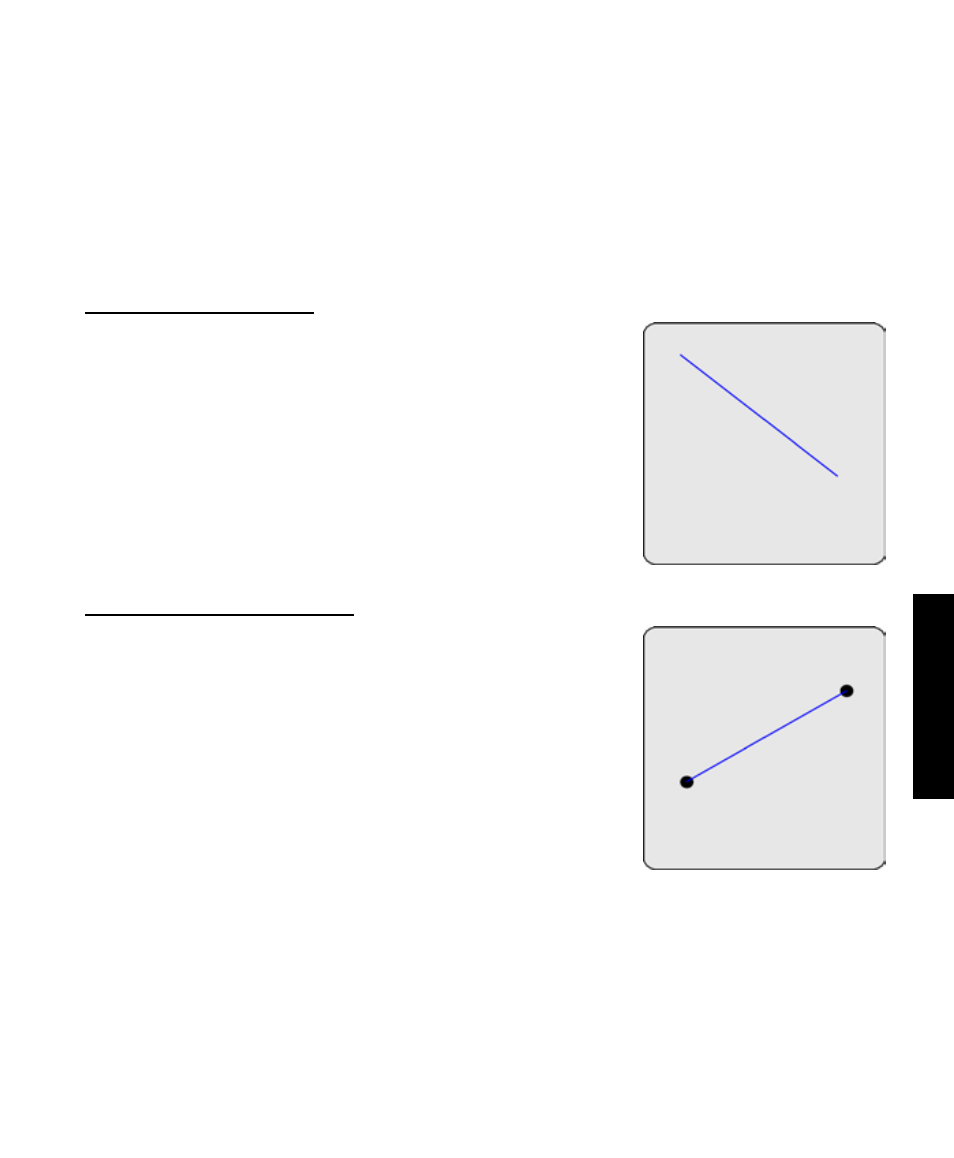

The new line feature will be constructed over the original line.
Line constructed from two points
The line feature will be constructed between the two points.
To construct a line from two points:
1 Touch the Measure Line icon
2 Touch the first point Feature
3 Press the Enter key
4 Touch the second point Feature
5 Press the Enter key
6 Press the Finish key
The new line feature will be constructed between the two points.
