Running programs
The operator will position the part and collect measurement data points in response to program text and the
green run-time arrow displayed on the screen. When the program has successfully completed executing,
feature data will be shown in the feature list and the screen will leave the program execution mode and
display the current position.
To run a program:
1 Touch the Program tab to display the program screen, touch a program title to select the desired
program and then touch the Run icon to run the selected program
During execution, after the datum is established, text and the green
run-time arrow will guide the operator through the program measure-
ment steps.
When the program is finished, the feature data will be shown in the
Feature list and the current position will be shown.

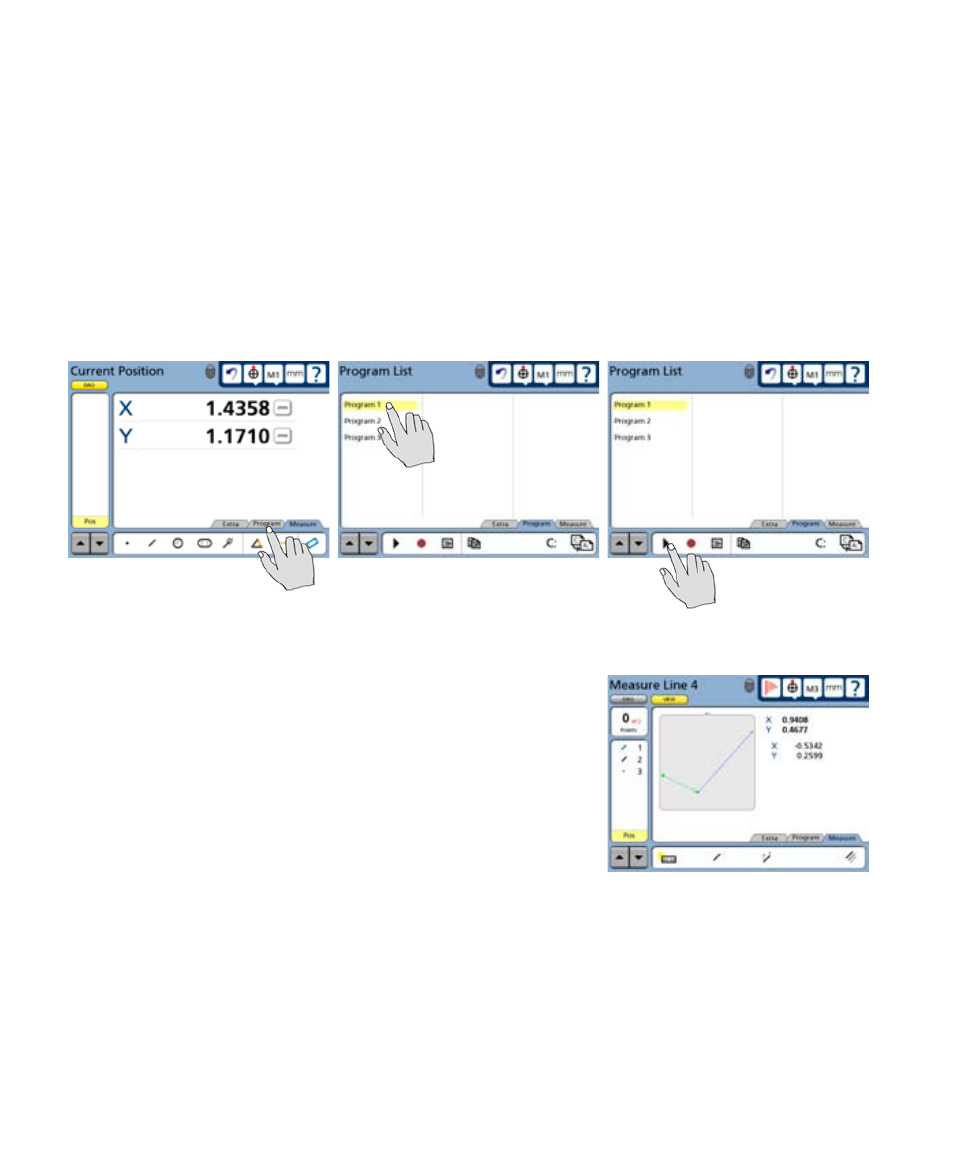

Touch the Program tab... select the program to run.. and then touch the Run icon
The runtime arrow guides the user
