124 QC-300 Series User’s Guide

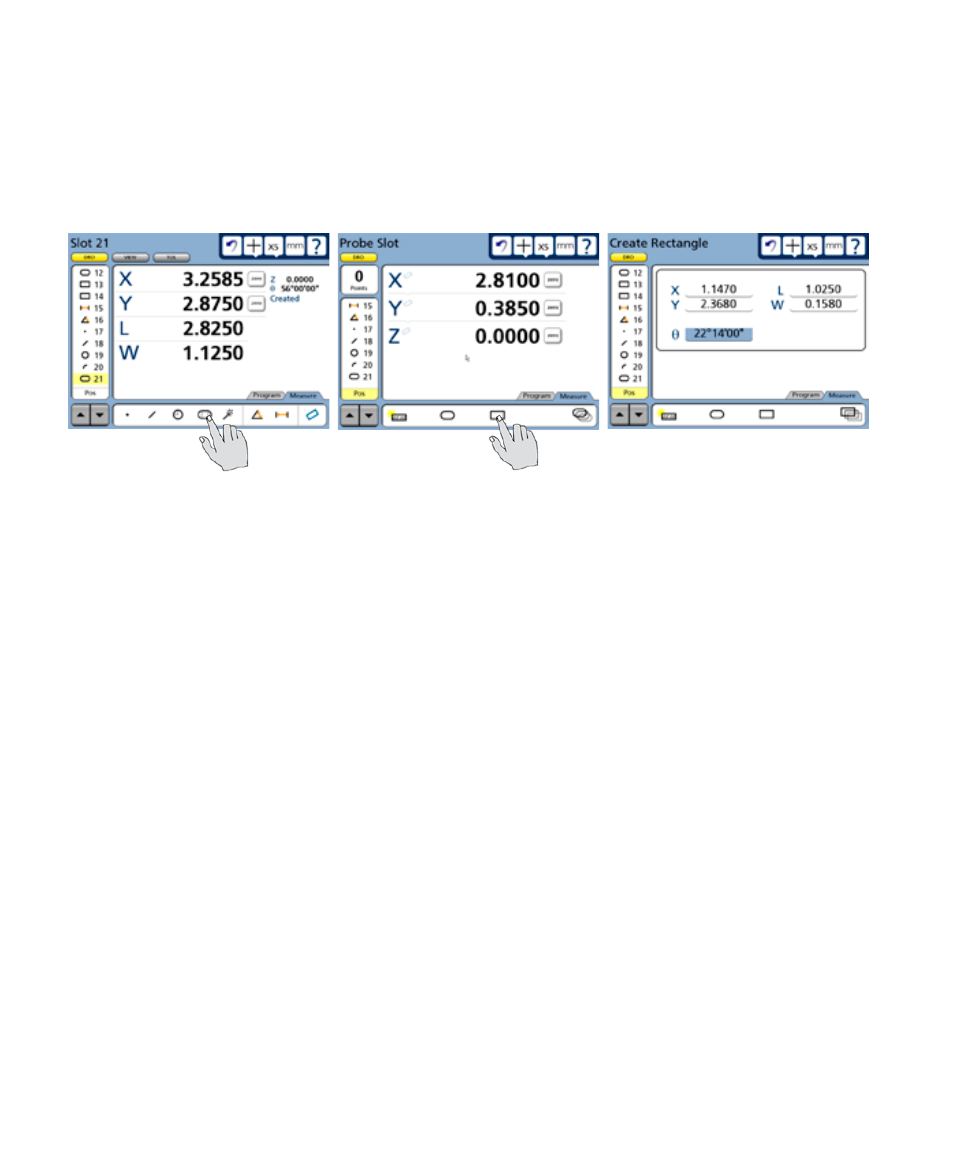

Creating a rectangle
To create a rectangle:
1 Touch the measure slot icon, the measure rectangle icon and then touch the data entry icon. The data
entry box will be displayed.
2 Enter the feature data in the fields provided and press Finish.
