76 QC-300 Series User’s Guide
Points constructed from two circles
Up to three point constructions can be made from two circles:
• Intersection point 1:
The first intersection of the two circles
• Intersection point 2:
The second intersection of the two circles
• Midpoint:
The midpoint of the congruent portion of the two circles
To construct a point from two circles:
1 Touch the Measure Point icon
2 Touch the first circle feature
3 Press the Enter key
4 Touch the second circle feature
5 Press the Enter key
6 Press the Finish key
The first intersect point of the two circles will be constructed. Alternative point constructions can be
selected from the drop-down menu in the DRO window.

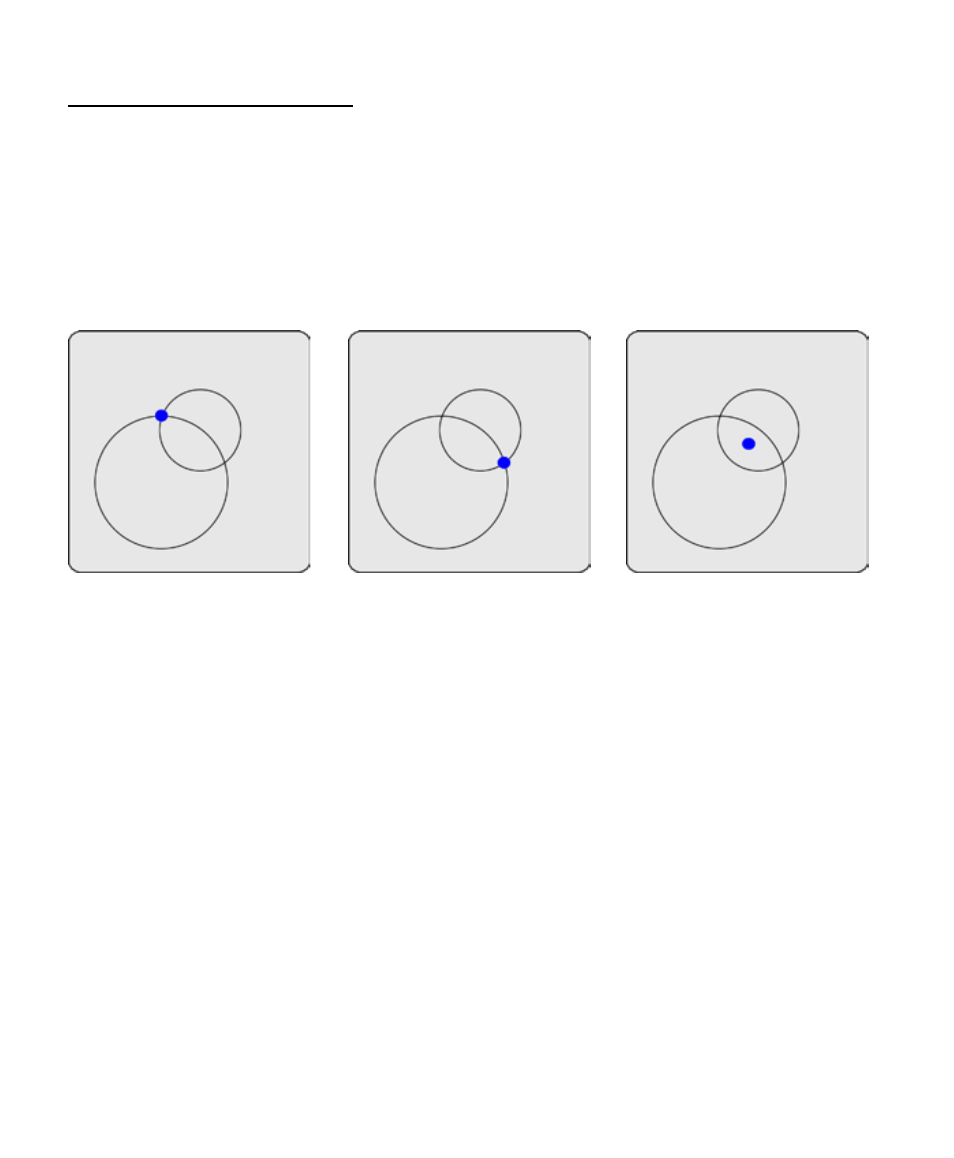

Intersection point 1 Intersection point 2 Midpoint
