Gasboy 1000 Series FMS Diagnostic Manual User Manual
Page 68
Receipt Printer Post
03/07/03
4-9

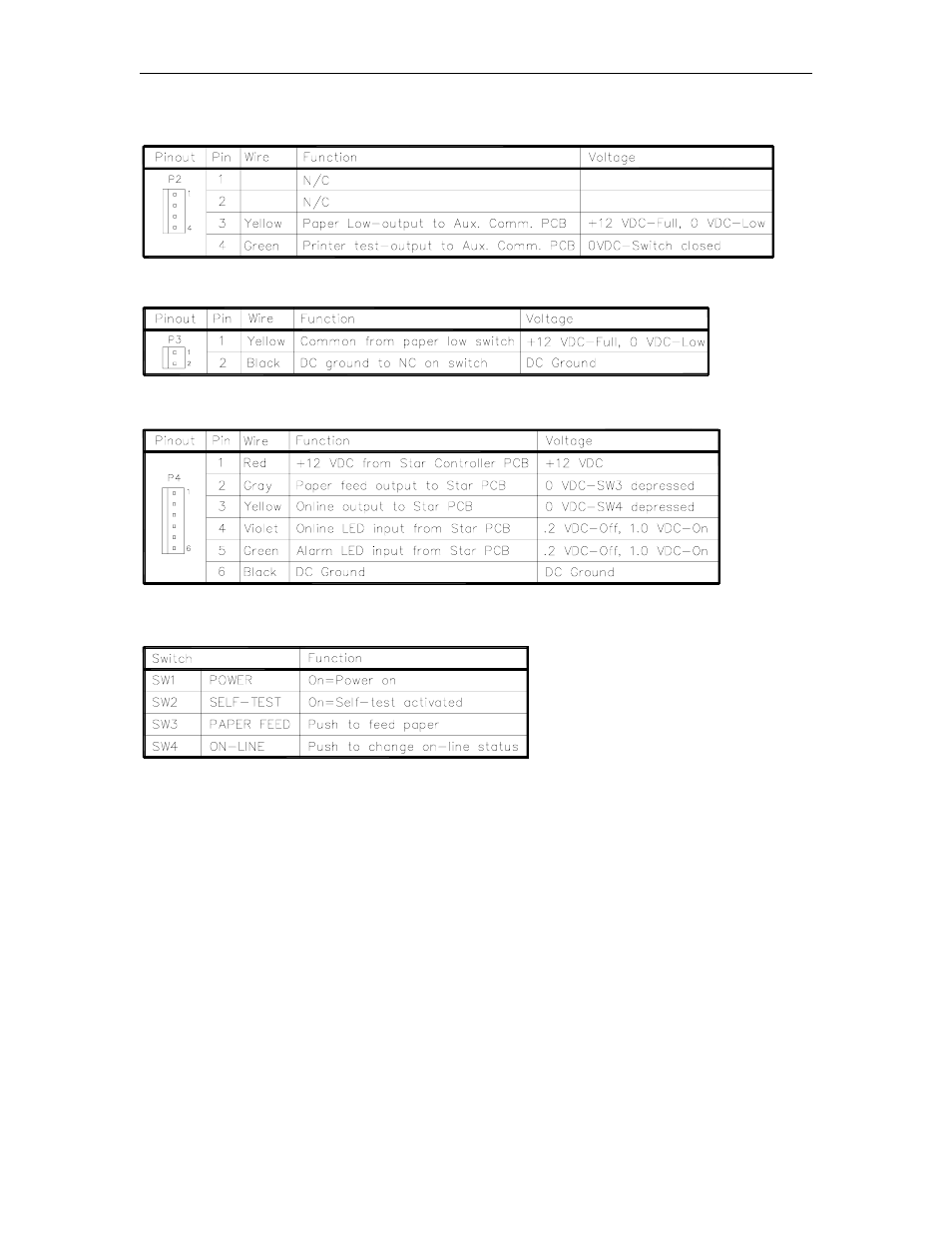

P2 - Paper Low & Printer Test Outputs
P3 - Paper Low Switch
P4 - Status PCB
Switches
SELF-TEST
The self-test switch starts a self-test on the printer. It will print a barber-pole
pattern of all characters that may be printed on a receipt. Switching back to the
right stops the printing and cuts the paper.
PAPER FEED This switch causes a continuous feed of paper. This is used when loading a new
roll of paper.
ON-LINE
This switch alternately puts the printer in the on-line or off-line mode. The printer
must always be on-line (green lamp on) to print receipts or perform a self-test.
