Page 63
GASBOY Series 1000
4-4
03/07/03

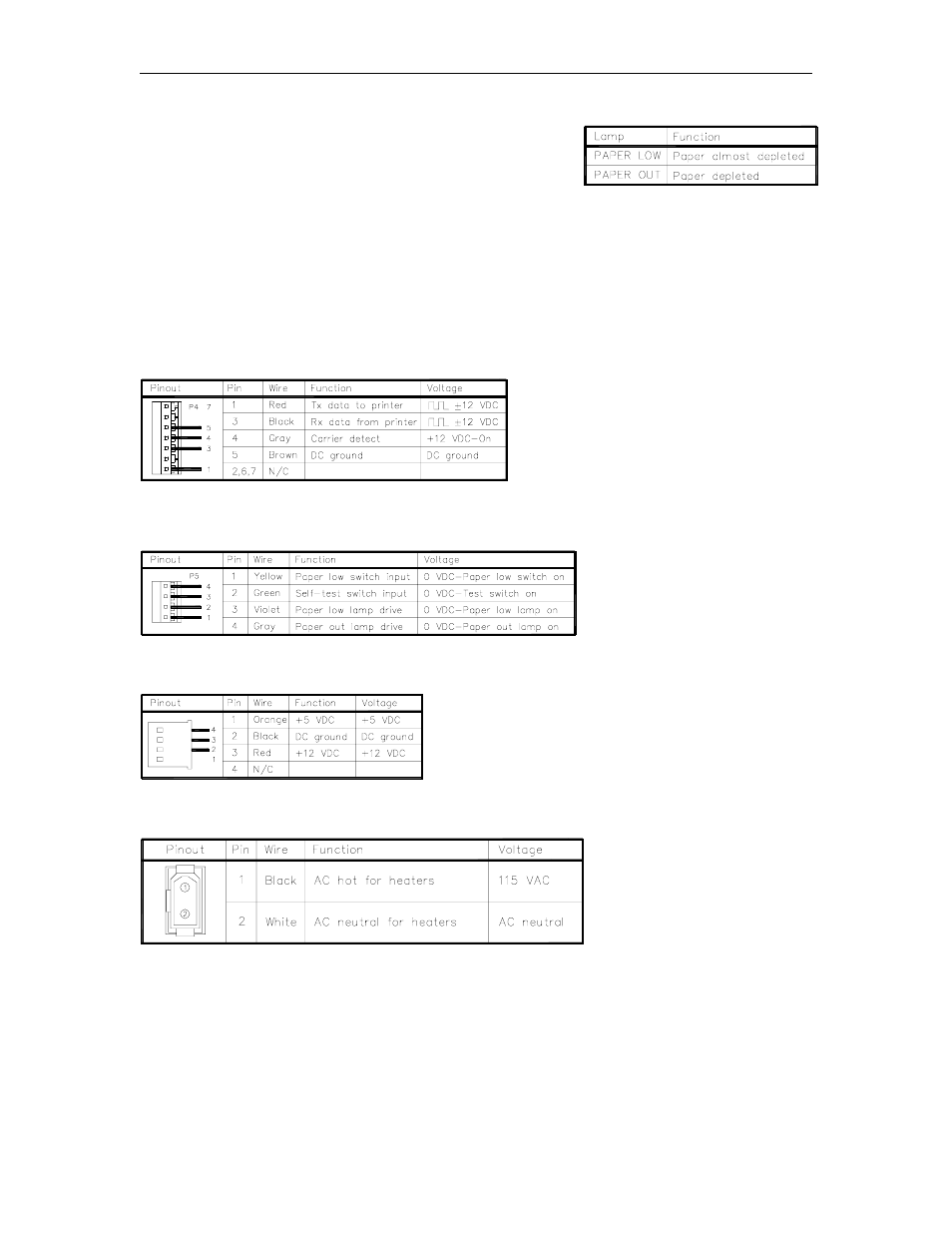

Lamps
The two lamps on the front of the post indicate the status of
the paper roll.
Wiring
There are no field connections made directly to the receipt printer. All field wiring is made to the
terminal blocks located in the lower half of the post. The power and data lines necessary to
control the printer are fed from the head assembly and are pre-wired from the factory.
Connectors
RS-232 Communication to P4 on Auxiliary Communications PCB
Printer Status to P5 on Auxiliary Communications PCB
DC Power to Power Supply
Heater Power to P4 on Chassis
