Head Assembly
03/07/03 2-25
KEY INTERFACE PCB (C06264)
The Key Interface PCB:
● provides an interface between two key receptacles and the MPU PCB
● provides ESD (electrostatic discharge) protection for the key interface lines
● controls selection of and power to the key receptacles

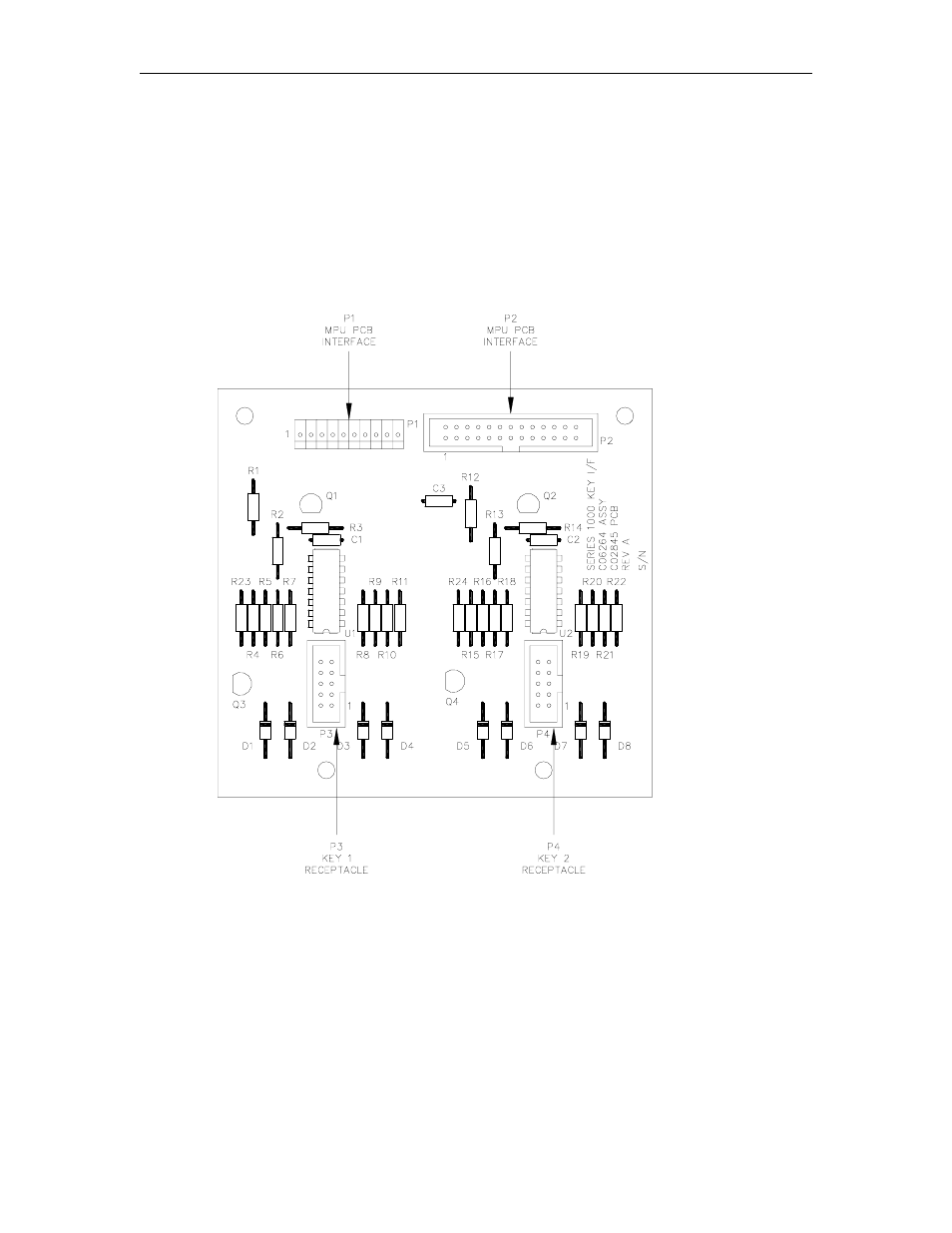

Layout
