Page 46
Head Assembly
03/07/03
2-27

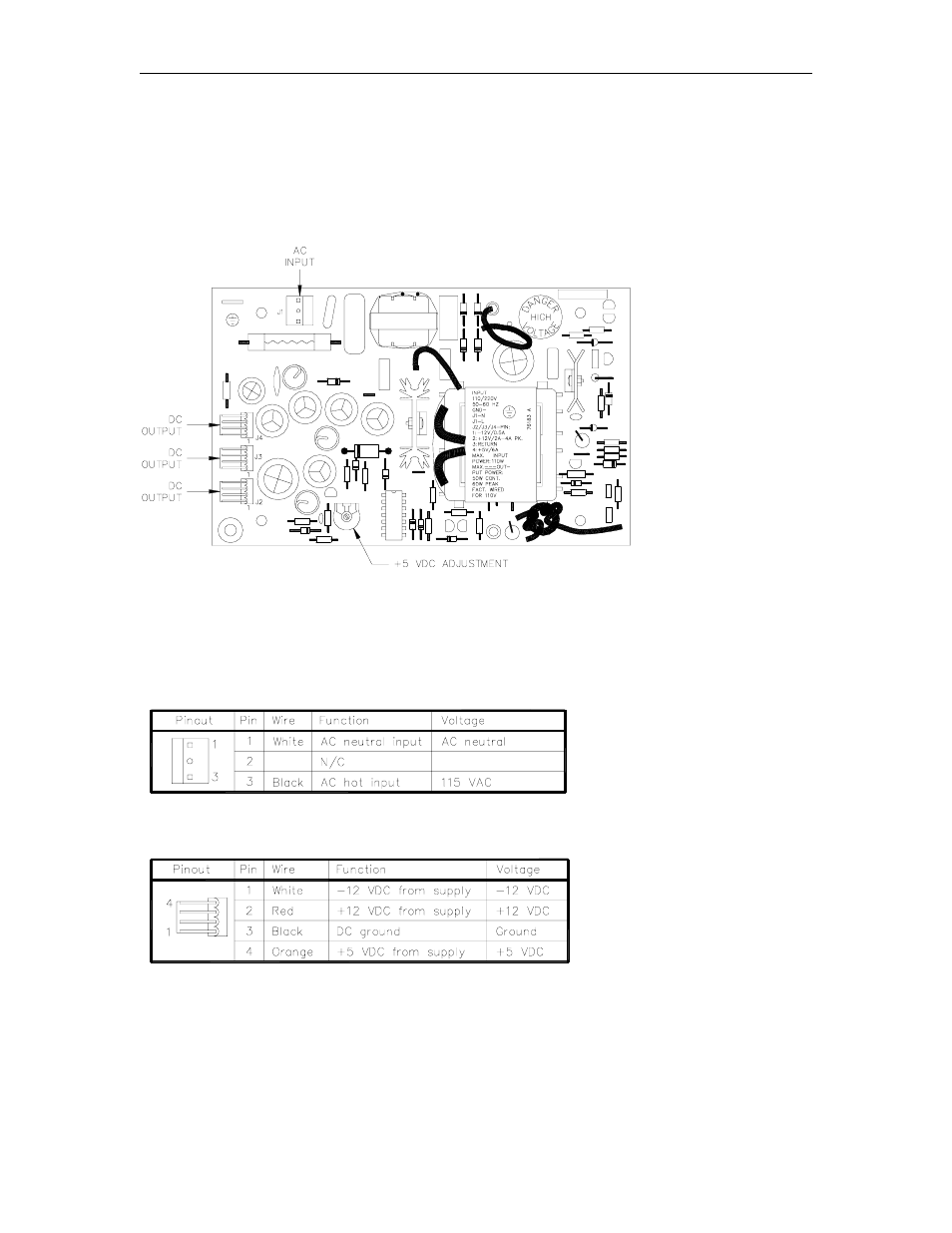

POWER SUPPLY (C09053)
The power supply provides internal power used by the Series 1000. This unit provides +5, +12,
and -12 VDC to the internal components (including the receipt printer).
Layout
NOTE: Power supply is rotated for readability. Actual installation in head has DC output
connectors on the right.
Connectors
AC Input
DC Output
