Wiring – Gasboy 1000 Series FMS Diagnostic Manual User Manual
Page 53
GASBOY Series 1000
3-2
03/07/03

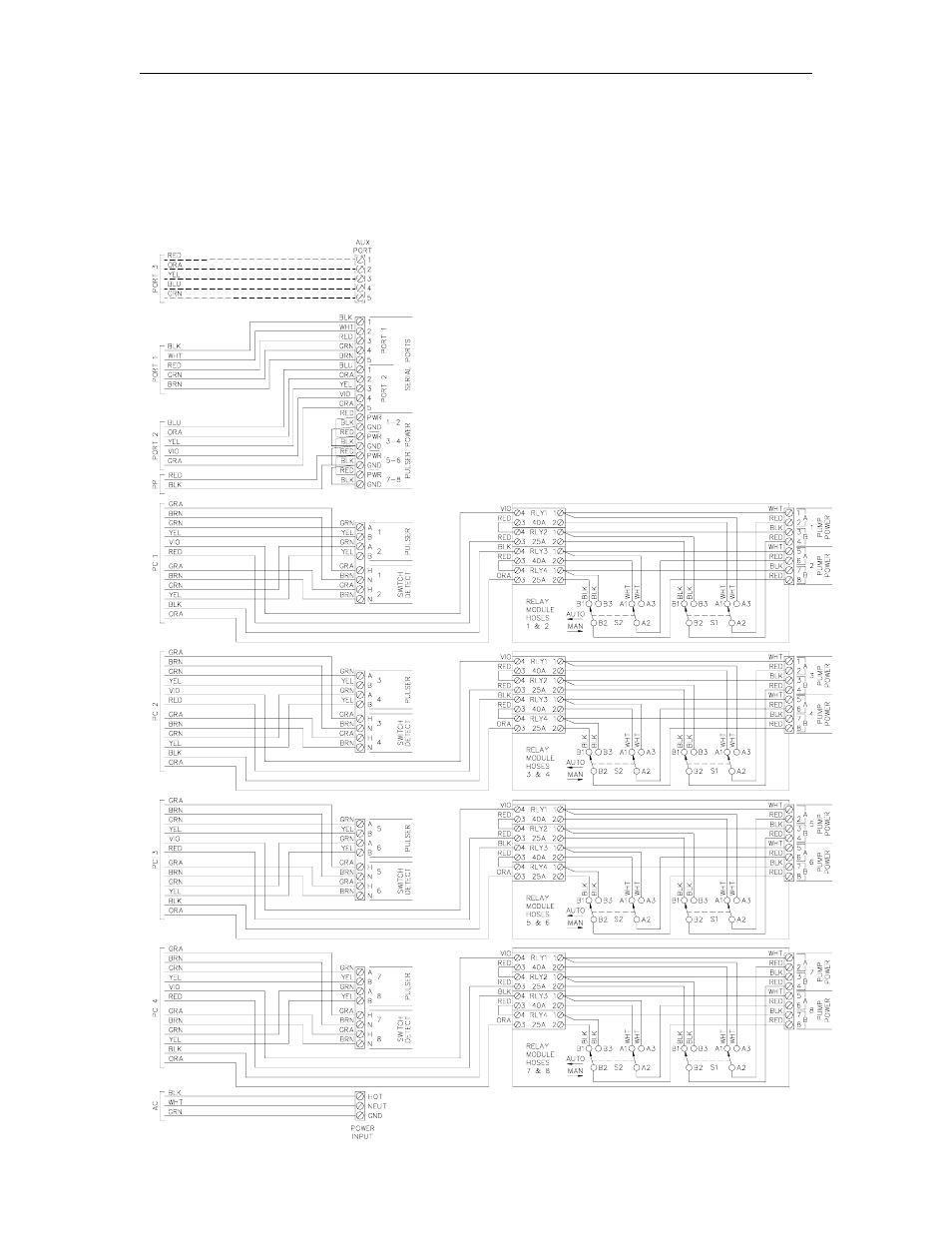

WIRING
All field wiring is made to the Series 1000 via terminal blocks located in the post. The wiring is
split into two classifications: AC and DC. Separate conduits must be provided for each. AC and
DC wiring must never be mixed in any common conduit, junction box, or trough, except as noted
in the Communication Wiring section of the Series 1000 Installation Manual.
