Wiring – Gasboy 1000 Series FMS Diagnostic Manual User Manual
Page 58
Standard Post Assembly
03/07/03
3-7

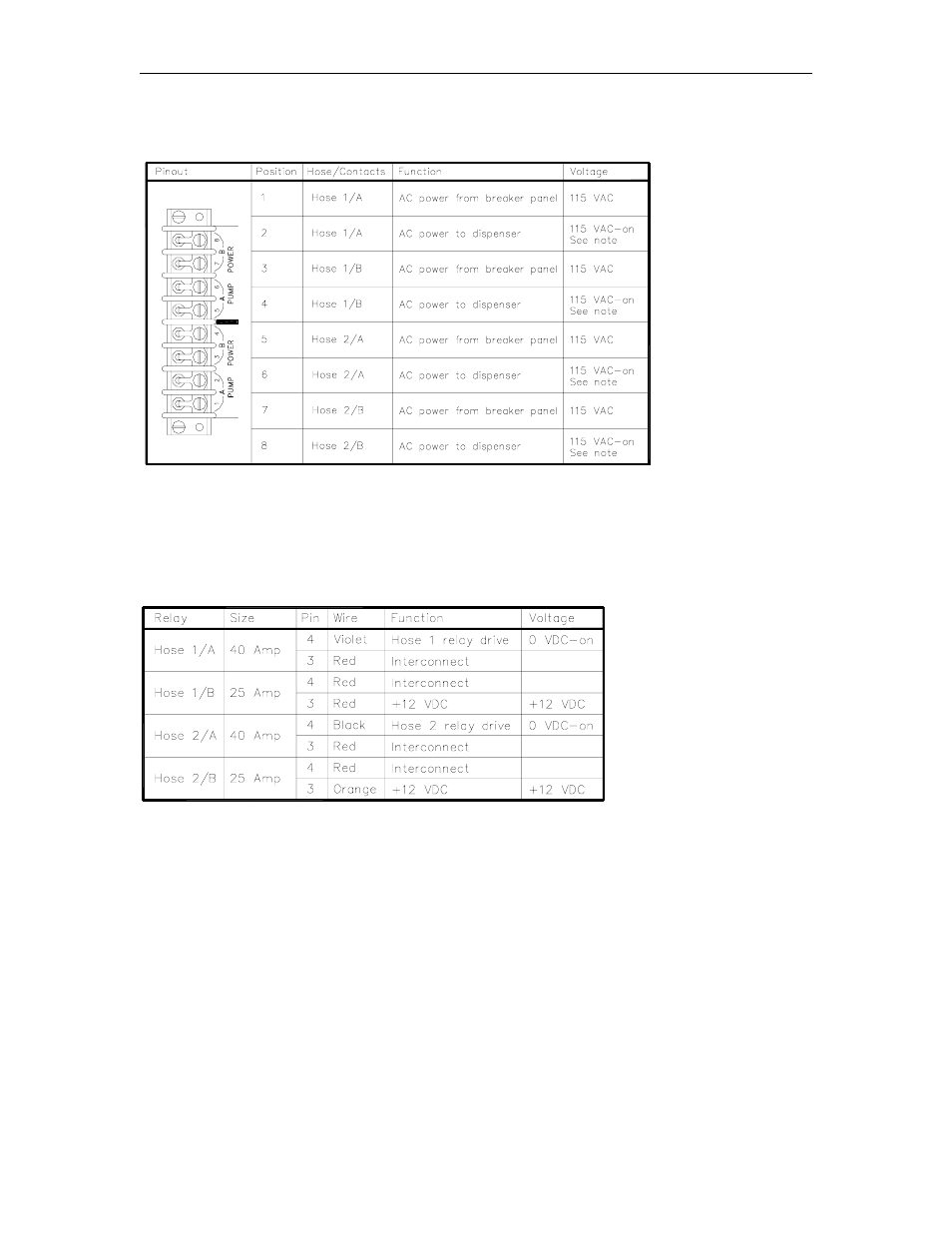

Wiring
Field Wiring Terminal Block
NOTE: AC power may appear to be present on this position even when the relay is not
energized. To test the actual condition of the relay, measure this point under a load. In
some cases, this can be accomplished simply by turning on a pump handle.
Relay Drive Lines
