Page 52
03/07/03
3-1
Section 3
STANDARD POST ASSEMBLY
DESCRIPTION
There are two post types available, the standard post and a receipt printer post. This section
covers the standard post; the following section covers the receipt printer post.
All solid state relays and manual override switches, which control power to the fuel dispensing
equipment, are located in the post. The wiring for all equipment connected to the Series 1000 is
terminated in the post.

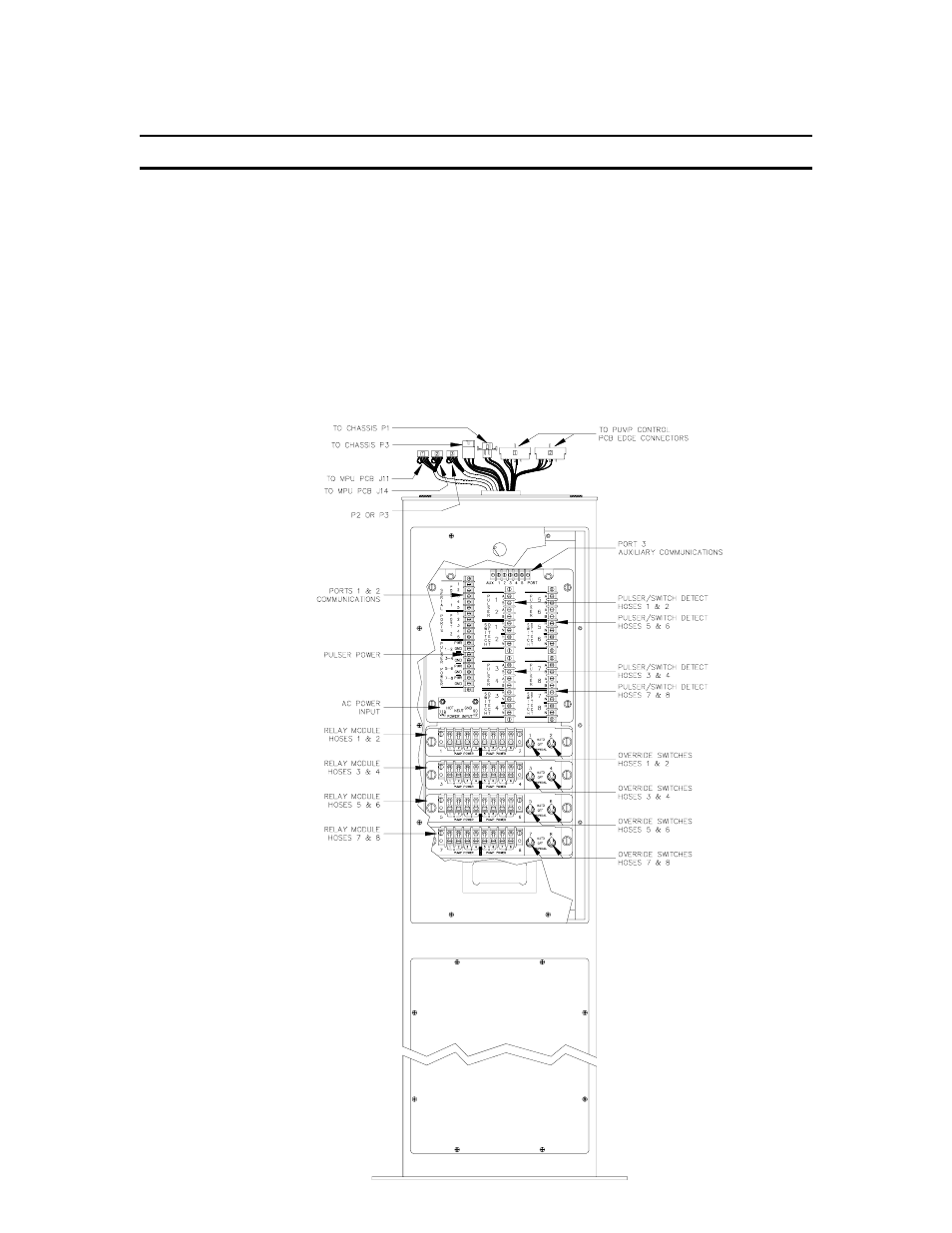

Layout
