Page 50
Head Assembly
03/07/03
2-31
INTERNAL MODEM (C01588) - OPTIONAL
The Internal modem:
●
provides communication from the Series 1000 to a remote polling station.
●
provides either 300 or 1200 baud communication rate.

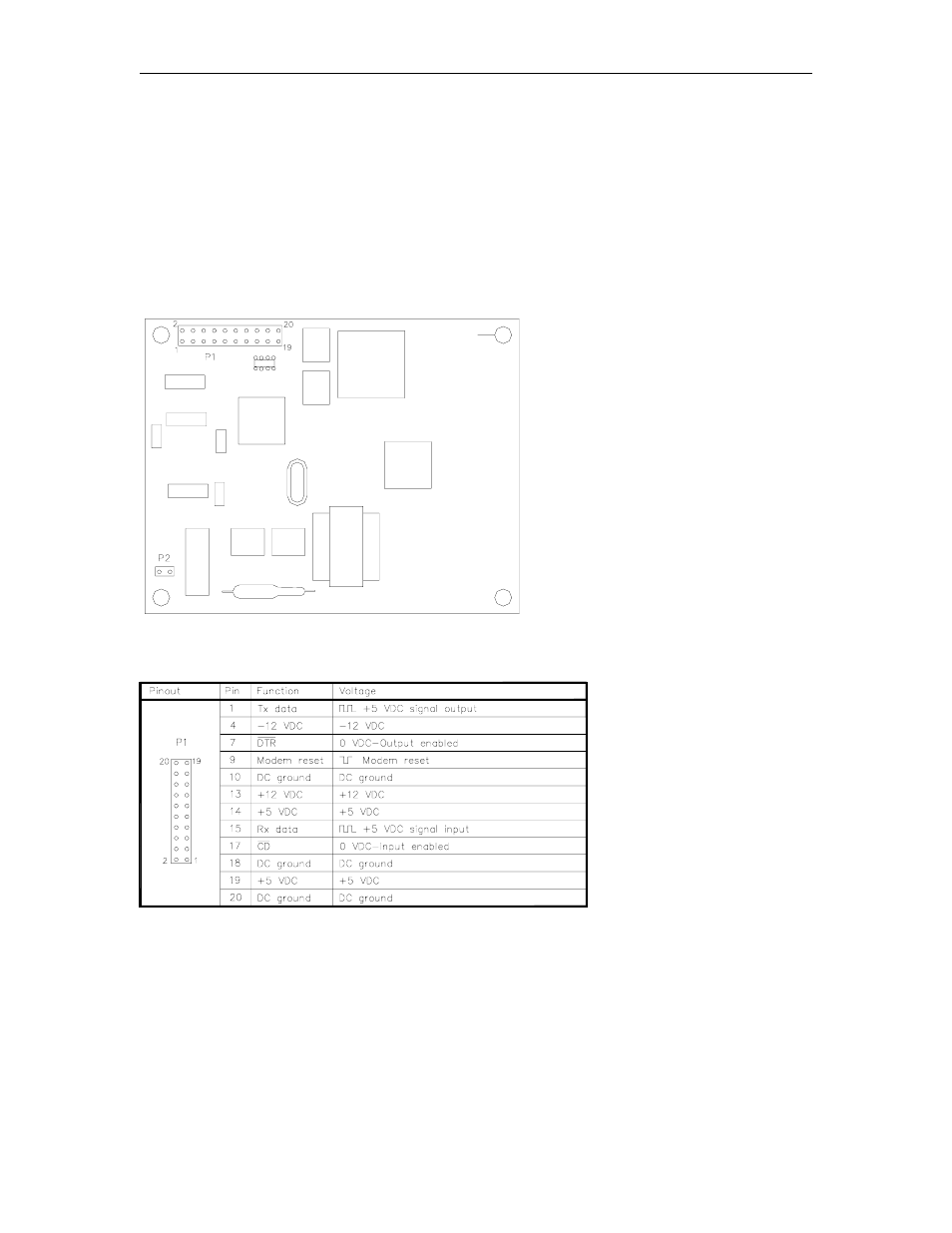

Layout
Connectors
P1 - MPU PCB Interface
P2 - Telephone Line Interface
Pins 1 and 2 must be connected to a 2-wire, voice-grade telephone line.
