Pump control pcb (c05677), Layout – Gasboy 1000 Series FMS Diagnostic Manual User Manual
Page 35
GASBOY Series 1000
2-16
03/07/03
PUMP CONTROL PCB (C05677)
The Pump Control PCB:
●
controls all mechanical and some electronic pumps
●
drives the relays which control the pumps
●
monitors status of the pump handle to turn relays on
●
contains status LEDs for each hose outlet
●
provides scheduled processor interrupts for internal program timing

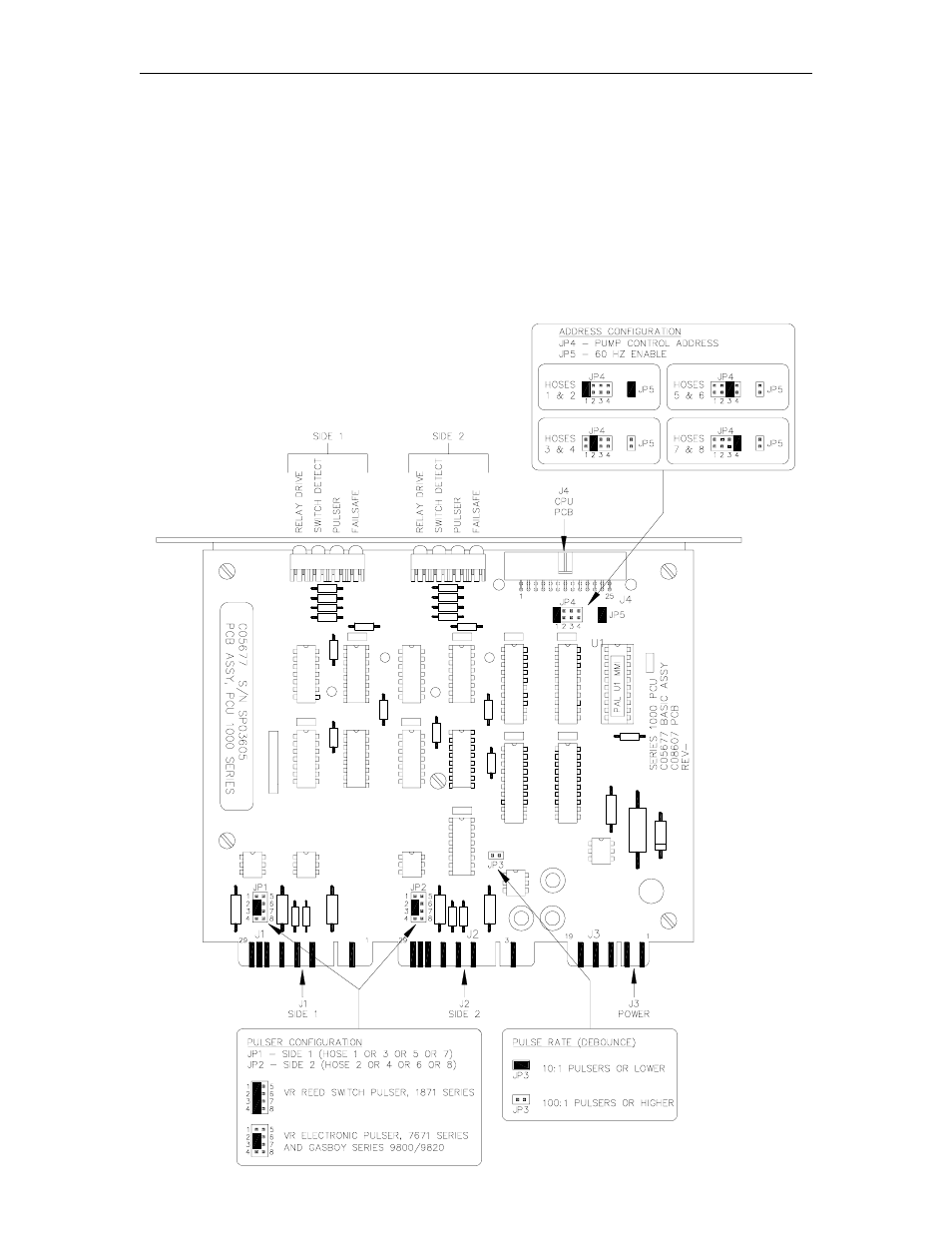

Layout
