Gasboy 1000 Series FMS Diagnostic Manual User Manual
Page 128
Replacement Instructions
03/07/03
7-9

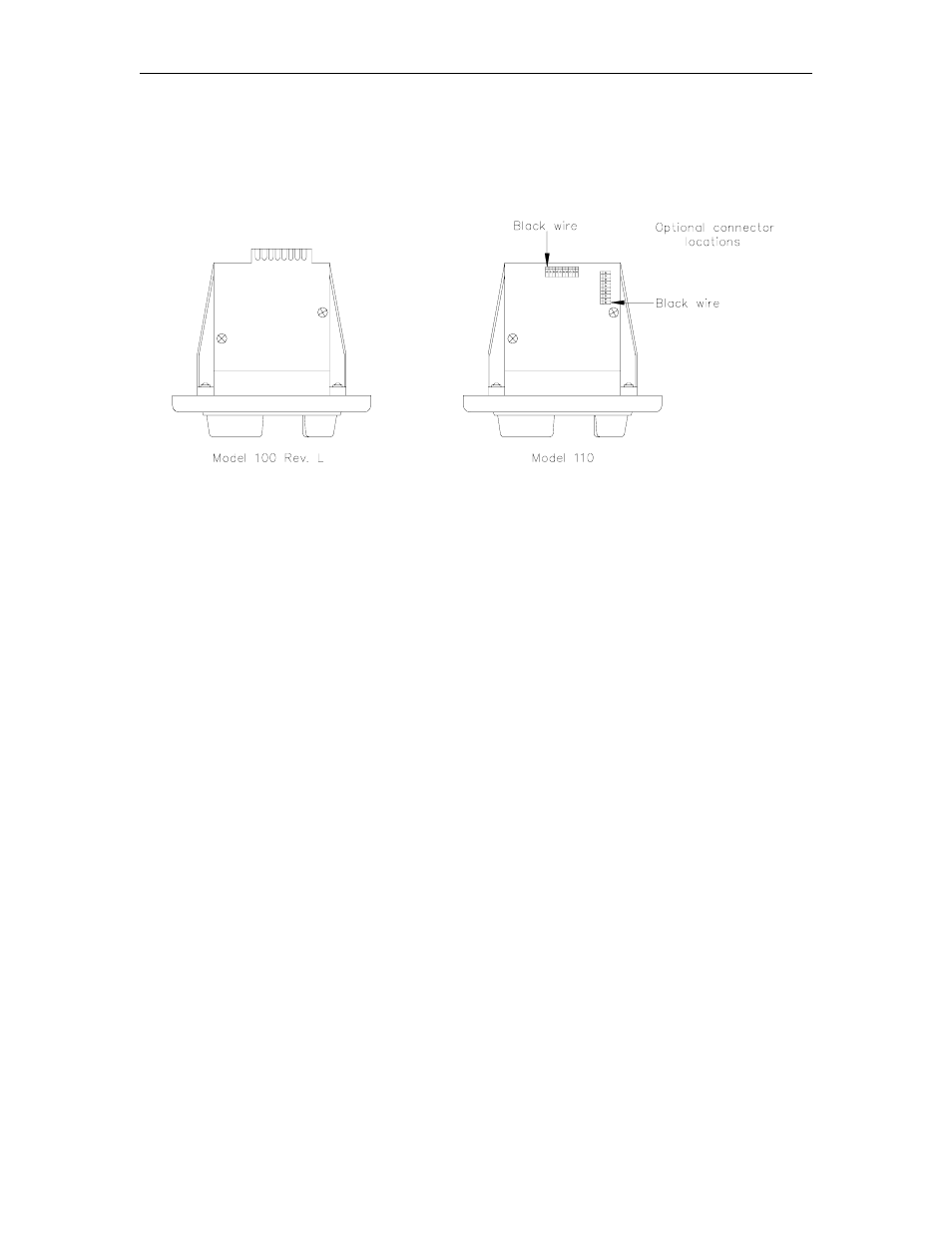

For Model 110, the reader appears to have two identical 10-position connectors. Upon
closer inspection, one connector has a red wire looped between pins 9 and 10. This
connector attaches to the MPU PCB; the other connector attaches to the mag reader with the
black wire positioned as shown below.
ORDERING INFORMATION: When replacing a Model 100, Rev. L mag reader, order GASBOY
P/N C05780. When replacing a Model 110 mag reader, order GASBOY P/N C08597. If you are
unsure as to which model mag reader you are replacing, order GASBOY P/N C05780.
