Connectors (not related to printer mechanism), Switches – Gasboy 1000 Series FMS Diagnostic Manual User Manual
Page 66
Receipt Printer Post
03/07/03
4-7

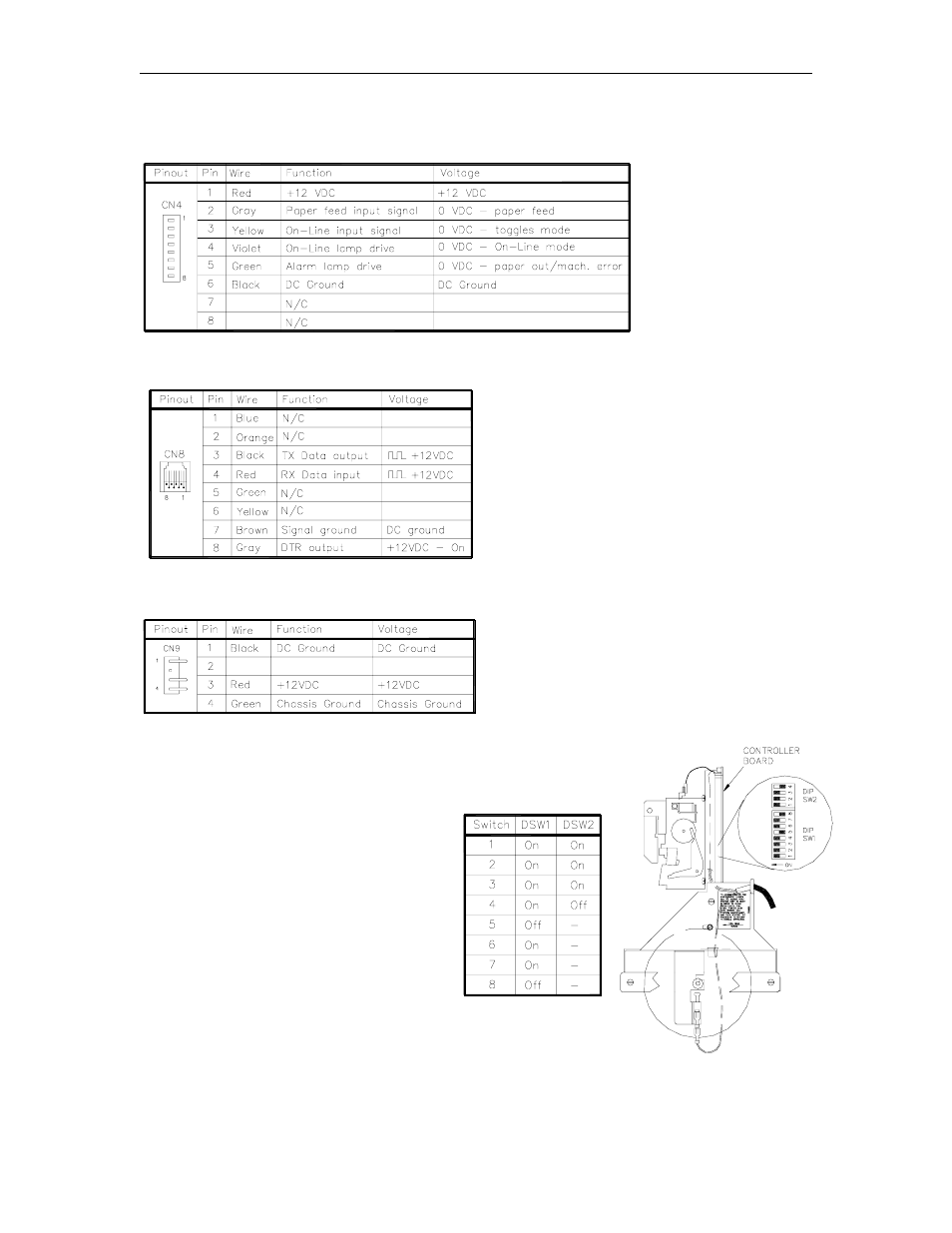

Connectors (Not Related to Printer Mechanism)
CN4 - Status PCB
CN8 - RS-232 From Auxiliary I/O PCB
CN9 - DC Power
Switches
The controller PCB dip switches are set at
the factory prior to shipment. For proper
operation of the printer, the controller PCB
switch settings should be as shown. The
location of these switches is also shown.
