Page 97
User’s Manual—SNAP™ 500 Gen 1 and Gen 2
97
10.4 Mini Web Guide Adapter
Some printers have the Mini Web Guide Adapter installed. To use this feature
• turn the large black web guide knob to widen the web guide plates to
their maximum “open” position.
• Slide the Mini Web Guide Adapter up, under the web guide, in between
the web guide plates.
• The Mini Web Guide Adapter will “clip” onto the web guide posts.
• Turn the large black web guide knob so that the web guide plates close in
on the Mini Web Guide Adapter.
• Doing this will automatically center the Mini Web Guide Adapter.

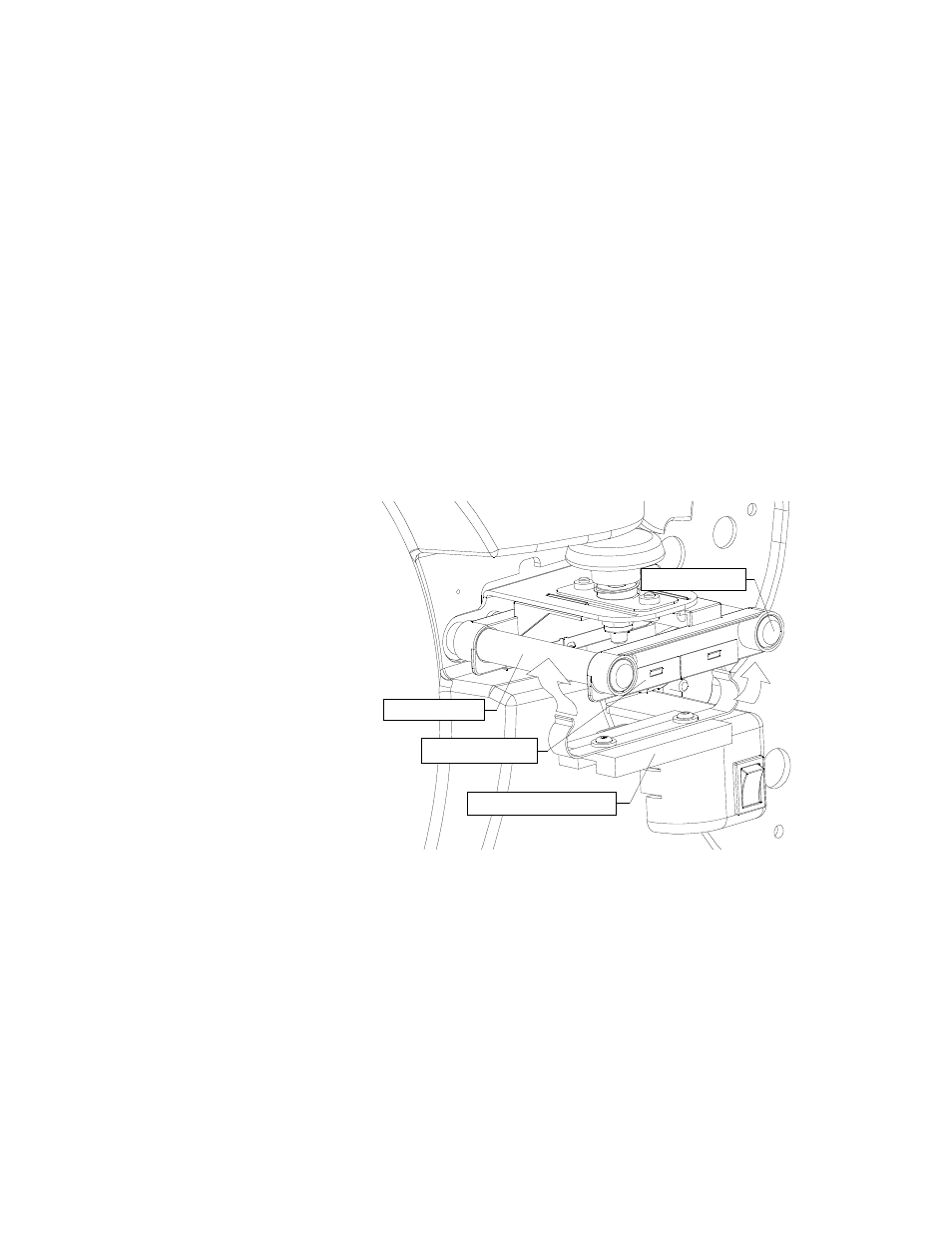

MINI WEB GUIDE ADAPTER
WEB GUIDE POST
WEB GUIDE POST
WEB GUIDE PLATE
