User’s Manual—SNAP™ 500 Gen 1 and Gen 2 127
6 6 1 7 7
2 8 8
3
5
5
8
8
4

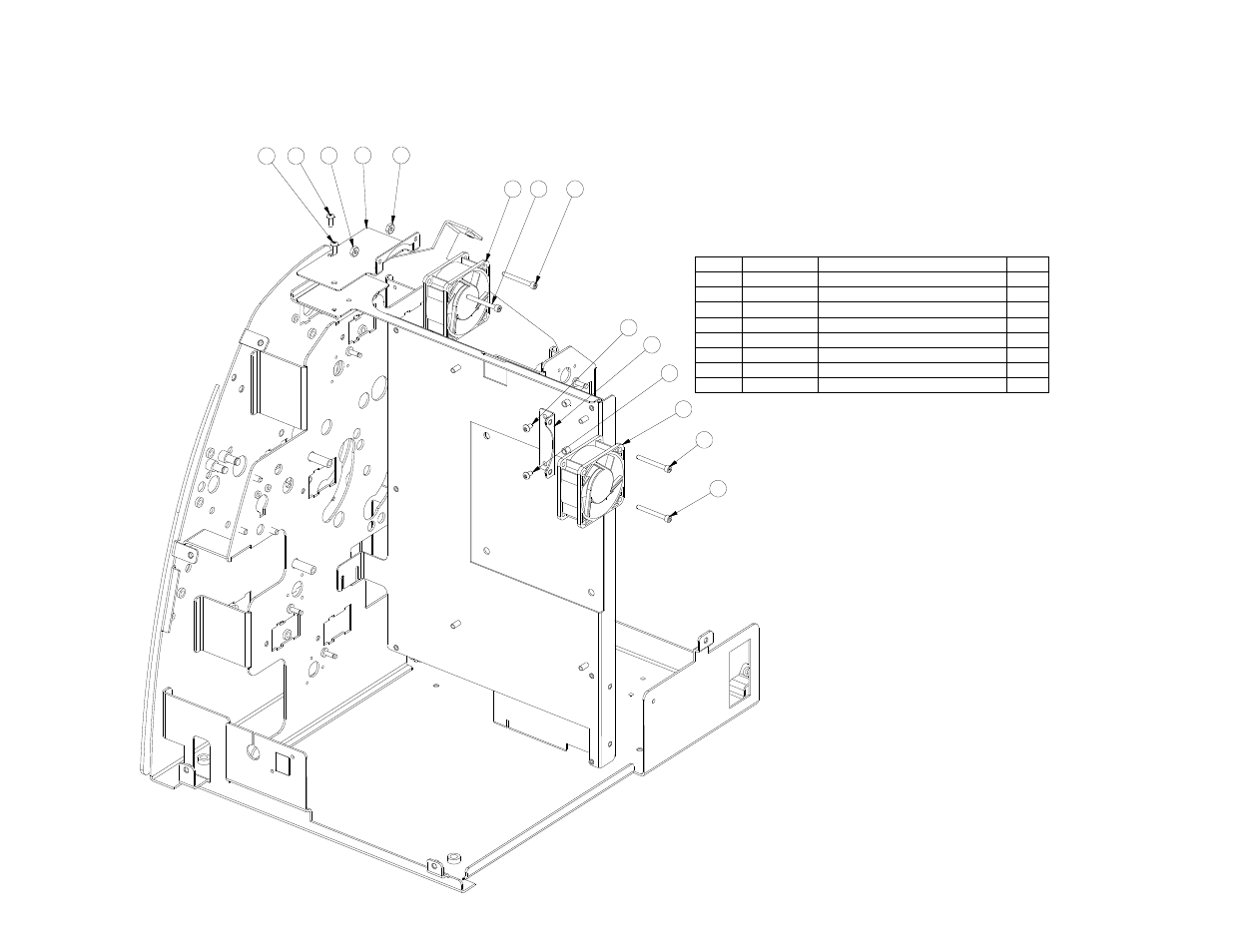

12.20 Fan Assembly – Gen 1
ITEM PART NO. DESCRIPTION QTY
1 581001 BRACKET, TOP FAN 1
2 581104-1 FAN, HARNESSED 12V 1
3 621004 BRACKET, EXIT FAN MOTOR 1
4 621134 FAN, HARNESSED 12V 1
5 990019 6-32 X 1/4 BHCS 2
6 990020 6-32 X 3/8 BHCS 2
7 990038 6-32 HEX NUT 2
8 991086 6-32 X 1 1/4 SHCS 4
