Avery Dennison SNAP 500 - Manual (Page 118)

User’s Manual—SNAP™ 500 Gen 1 and Gen 2 118

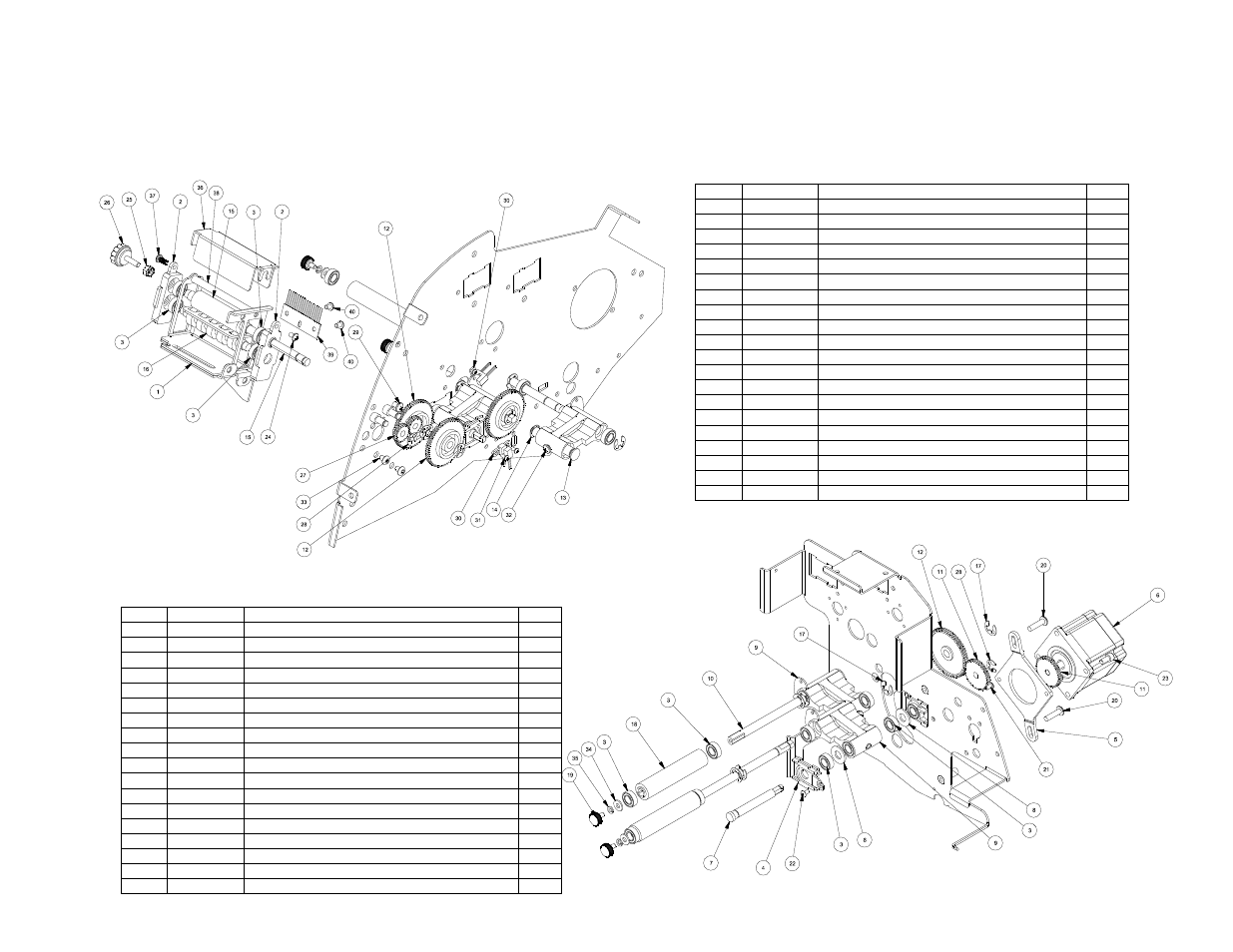

12.11 Feed – Drive Train Assembly – Gen 1
*Recommended spare parts
ITEM PART NO. DESCRIPTION QTY
21 991372 6-32 X 250 PHILLIPS PAN HEAD SCREW 1
22 990019 6-32 X 1/4 BHCS 1
23 990080 10-32 X 3/8 SHCS 2
24 991373 8-32 X 1/4 PHILLIPS PAN HEAD SCREW 1
25 990104 10-32 E-S NUT 1
26 206042 THUMB SCREW KNOB WITH THREADS 1
27 584027 GEAR, IDLER 22T, 32P 2
28 990326 E-RING, 1/4 3
29 991376 10-32 X 1/2 PHILLIPS PAN HEAD SCREW 1
30 581130 SENOSR, OPTICAL SLOTTED, HARNESSED 2
31 989983 4-40 X 1/4 PHILLIPS PAN HEAD SCREW 4
32 991480 10-32 X 5/16 PHILLIPS PAN HEAD SCREW 1
33 990089 10-32 X 1/4 BHCS 2
34 990067 #8 SAE WASHER 2
35 990068 LOCK WASHER, #8 2
36 584075 COVER, FEED GUARD, SNAP 500 1
37 991636 8-32 X 3/8 PHILLIPS PAN HEAD SCREW 1
38 594041 SHAFT, AUX. DRIVE SUPPORT 1
ITEM PART NO. DESCRIPTION QTY
1 584011 FRAME, KNIFE / DRIVE 1
2 584010 SUPPORT, BEARING 2
3 117903 BALL BEARING 16
4 118052 HOLDER, BEARING 2
5 584057 BRACKET, FEED MOTOR MOUNT 1
6 351141 STEPPER MOTOR, HARNESSED 1
7 585013 SHAFT, SWING BLOCK 1
8 990439 NYLON WASHER 2
9 585014 BRACKET, SWING ARM 2
10 585024 SHAFT, PLATEN ROLLER 2
11 585016 GEAR, 38T DRIVE 300 DPI 2
12 117902 GEAR, PLATEN 3
13 585012 SHAFT, SWING BLOCK 1
14 990486 SNAP RING, 3/8 E-RING 1
15* 584012 ROLLER, AUX DRIVE 1
16* 584013 ROLLER, MOLDED, IDLER 1
17 990327 E-RING, 5/16 10
18* 595010 ROLLER, MOLDED PLATEN - RED 2
19 991454 8-32 THUMB SCREW 2
20 991377 10-32 X 3/4 PHILLIPS PRINT HEAD SCREW 2
