Avery Dennison SNAP 500 - Manual (Page 132)

User’s Manual—SNAP™ 500 Gen 1 and Gen 2 132
8
7
5
5
3
5
6
5
1
2
4

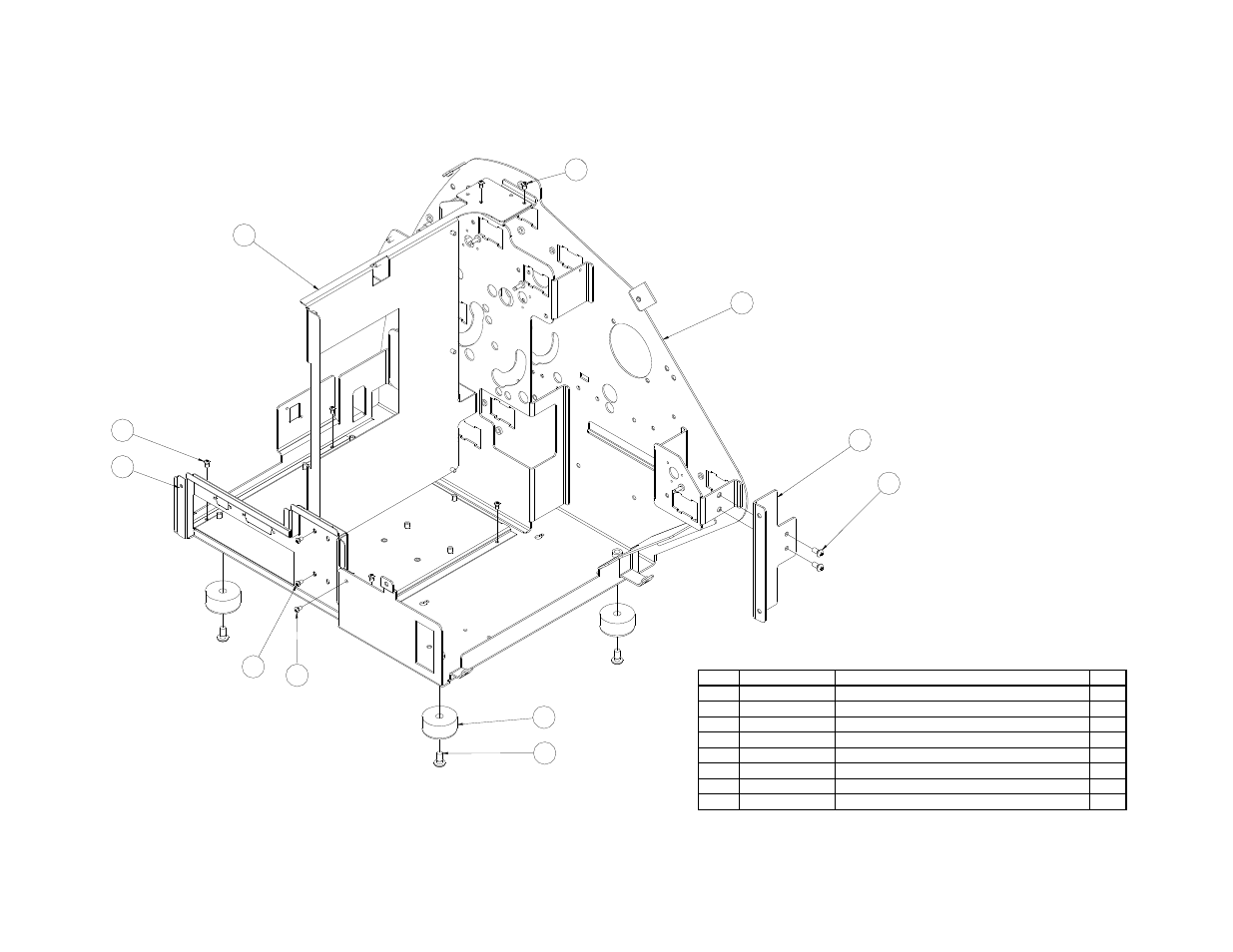

12.25 Upright Frame Assembly – Gen 1
ITEM NAME DESCRIPTION QTY
1 581201K_SH 2 FRAME, UPRIGHT 1
2 581201K_SH 6 BRACKET, SUPPORT, REAR COVER 1
3 581201K_SH 7 FRAME, MOTHER BOARD TRAY 1
4 991379 10-32 X 3/8 PHILLIPS PAN HEAD SCREW 2
5 991372 6-32 X 1/4 PHILLIPS PAN HEAD SCREW 9
6 581204-2 BRACKET, MCB SUPPORT 1
7 341210 FEET, 1 1/2 DIAMETER X 3/4 HIGH 4
8 991374 1/4-20 X 1/2 PHILLIPS PAN HEAD SCREW 4
