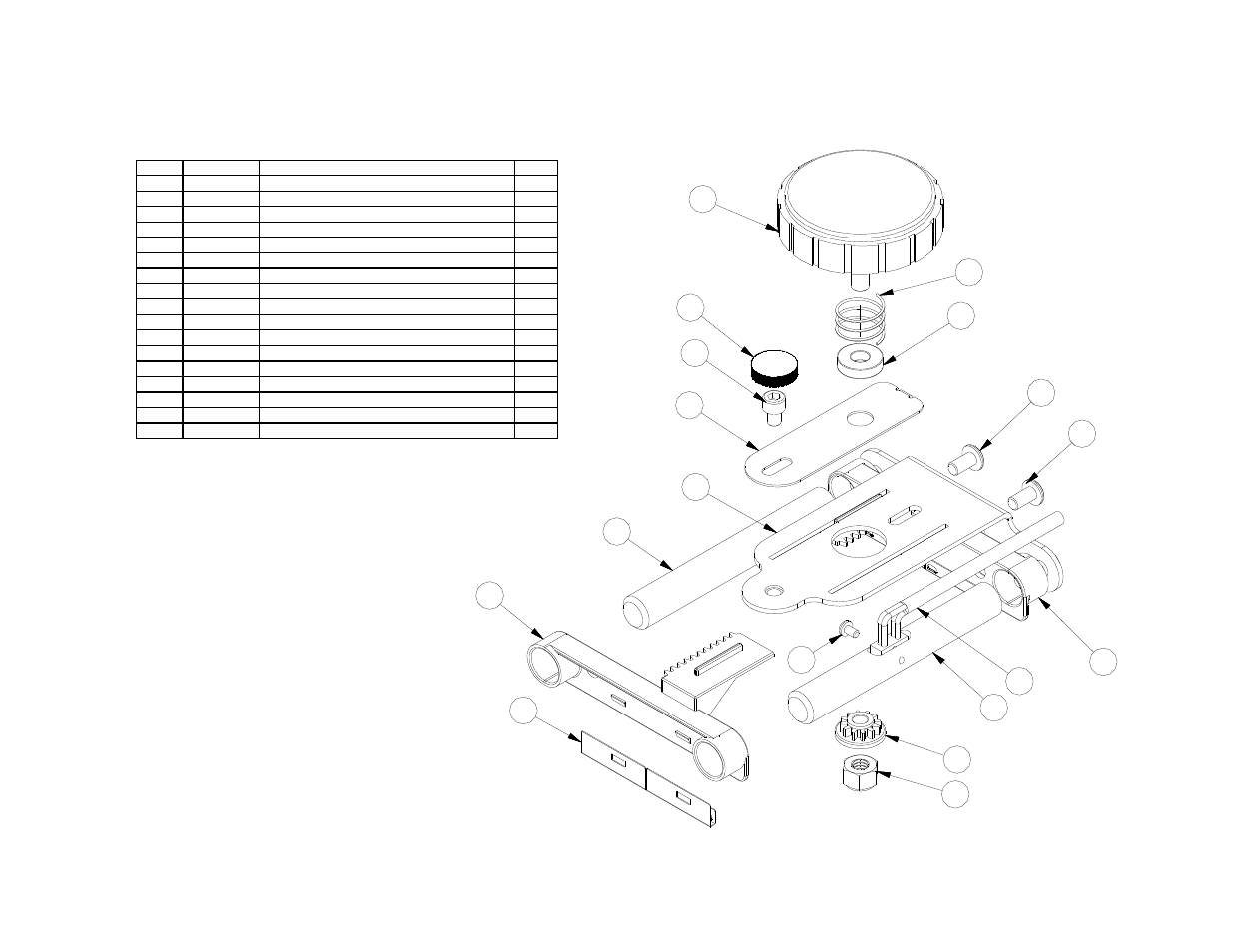

12.4 Guide Assembly – Gen 1 and 2
* Recommended spare parts
ITEM PART NO. DESCRIPTION QTY
1 584058 BRACKET, WEB GUIDE 1
2 584059 PLATE, WEB GUIDE 1
3 584009 SHAFT, WEB GUIDE 1
4 584024 SHAFT, WEB GUIDE (SENSOR) 1
5 584006 BRACKET, WEB GUIDE 2
6* 118826 GUIDE, WEAR 4
7 991374 1/4 SCREW, 1/4-20 X 1/2 PAN PHILLIPS 2
8 584035 SPACER, WEB GUIDE 1
9 991447 SPRING, COMPRESSION 1
10 990079 10-32 X 1/4 CAP SCREW 1
11 990313 THUMB KNOB, #10 1
12 584025 GEAR, WEB GUIDE ADJUST 1
13 990148 1/4-20 E-S NUT 1
14 991366 KNOB, CLAMPING 1
15 581128 SENSOR, REF HARN 1
16 989975 4-40 X 3/16 PAN HD SCREW 1
17 991379 10-32 X 3/8 PHILLIPS PAN HEAD SCREW 2
