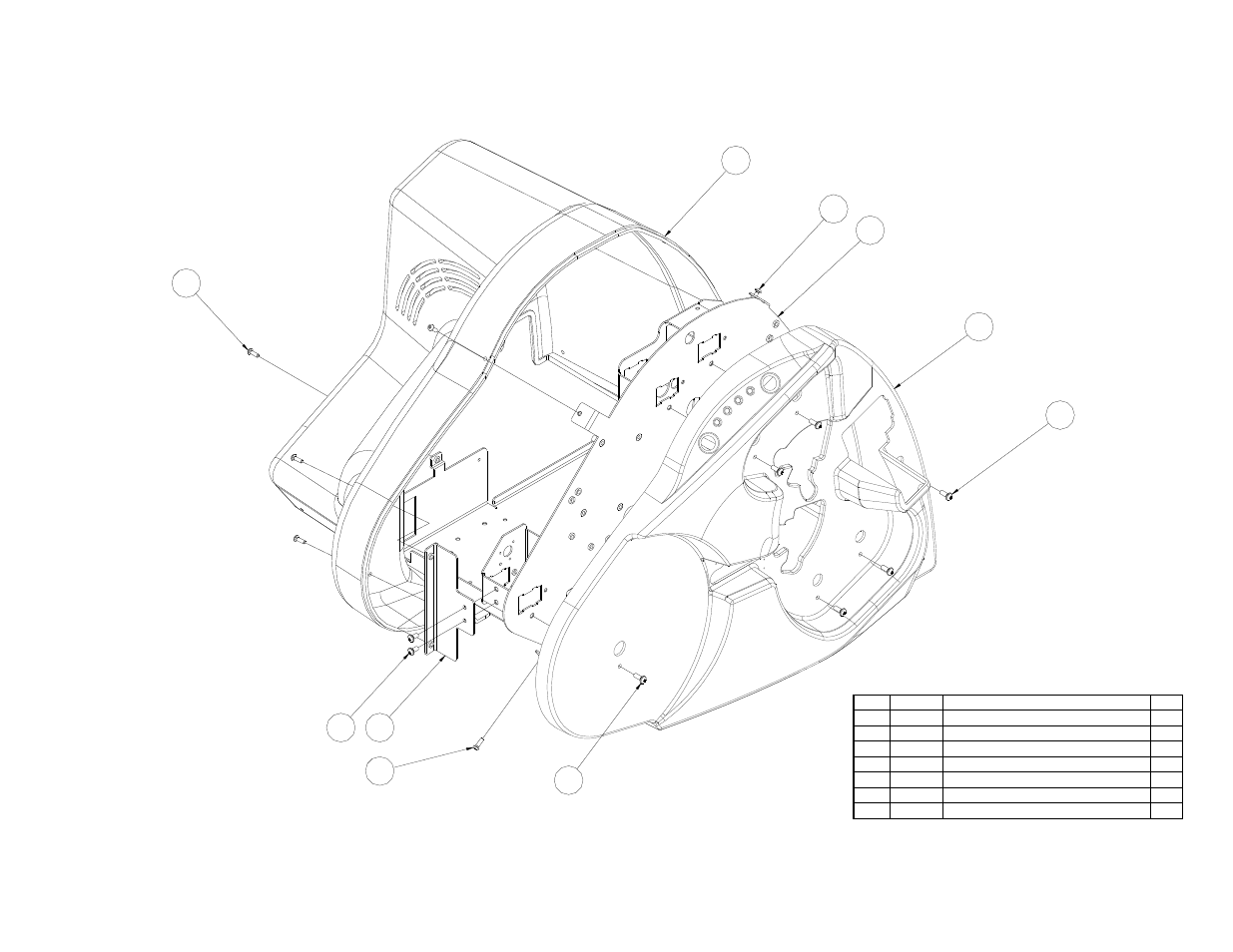

12.18 Covers Assembly – Gen 1
Item Part #
Description
Qty
1
991376 10-32 x 1/2 Phillips pan head screw
6
2
991379 10-32 x 3/8 Phillips pan head screw
2
3
581205 Cover, Rear
1
4
581201 Frame, Upright
1
5
581207 Bracket, Support, Rear cover
1
6
990091 8-32 x 1/2 Button head screw
10
7
581206 Cover, Front
1
