User’s Manual—SNAP™ 500 Gen 1 and Gen 2 130

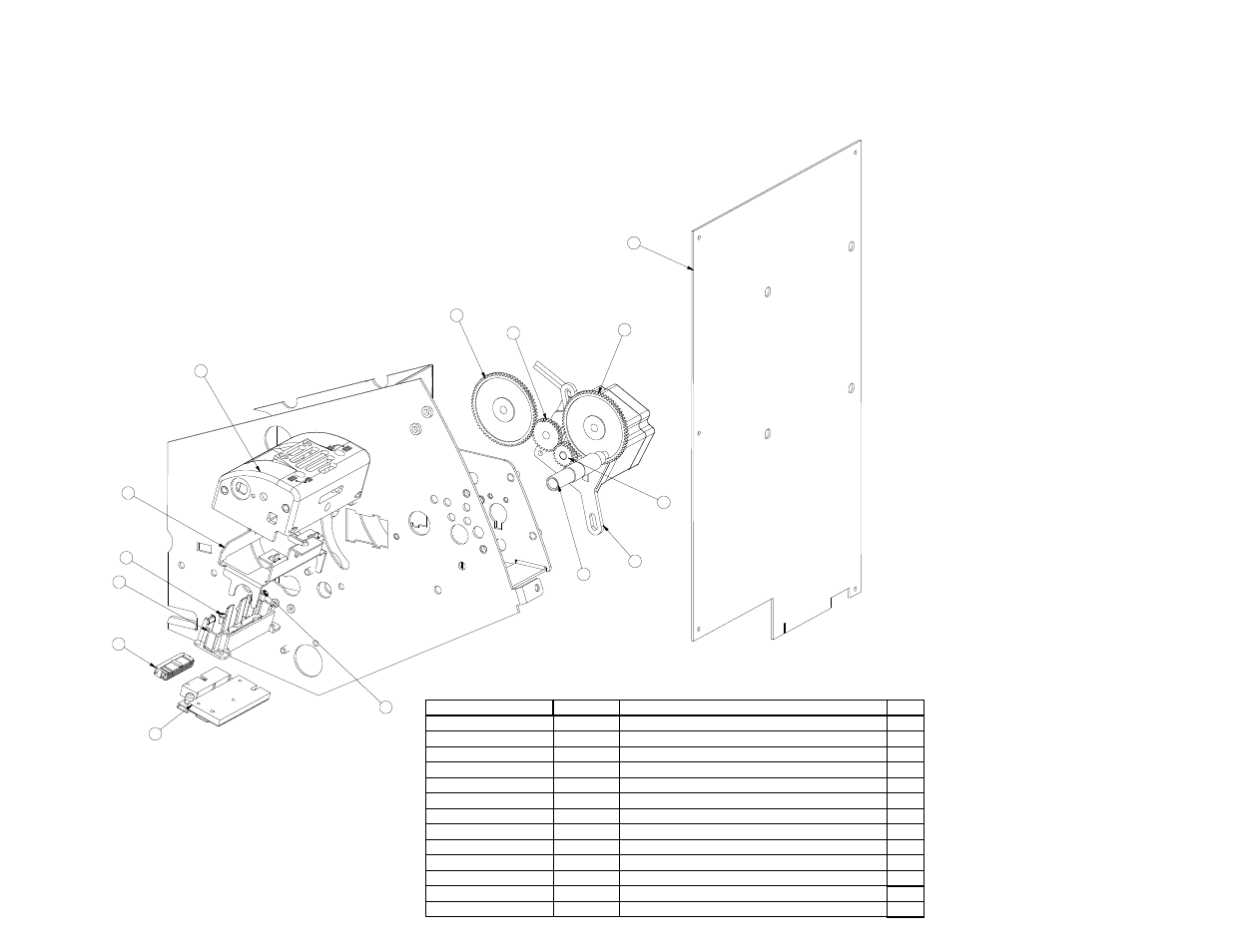

12.23 600DPI Machine Parts List – Gen 1
Part No. Item No. Description Qty
584072 1 Motor Bracket 1
587117 2 Knife Shaft 1
591143 3 Print Head Cable 2
621107 500 600DPI 4 PCB, MCB 500 600 DPI 1
631102 5 Print Head 600dpi 2
634028 6 70T Gear 2
634029 7 30T Gear 1
634031 8 21T Gear 1
635022 9 Mount, Print Head 2
635023 10 Bracket, 600DPI Print Head Mount 2
635021 11 Retainer, 600DPI Print Head 2
989530 12 3 x 6mm PHILL PAN HD SCR 4
580078D NA DOCUMENT, 600DPI UPGRADE, SNAP 500 1
2 3 x 6mm PHILL PAN HD SCR 989530 13
2 BRACKET, 600DPI PRINT
HEAD MOUNT
635023 12
2 MOUNT, PRINT HEAD 635022 11
2 RETAINER, 600DPI PRINT
HEAD
635021 10
1 GEAR, 21T 634031 9
1 GEAR, 30T 634029 8
2 GEAR, 70T 634028 7
2 PRINT HEAD, 600 DPI 631102 6
1 PCB, MCB 500 600DPI 621107 500 600DPI 5
2 CABLE, PRINT HEAD 591143 4
1 ASSY, KNIFE DRVE SHAFT
600 DPI
587020 3
1 BRACKET, FEED MOTOR
MOUNT 600DPI
584072 2
1 DOCUMENT, 600DPI
UPGRADE, SNAP 500
580078D 1
QTY DESCRIPTION PART NO. ITEM
10
11
9
12
12
3
5
6
6 7
8
2
1
4
