1 unwind assembly – gen 1 – Avery Dennison SNAP 500 User Manual
Page 108
User’s Manual—SNAP™ 500 Gen 1 and Gen 2
108
17
14
16
15
6
22
23
20
19
21
9
1
2
3
13
7
8
4
5
3
12
11
10
6
2
18
24

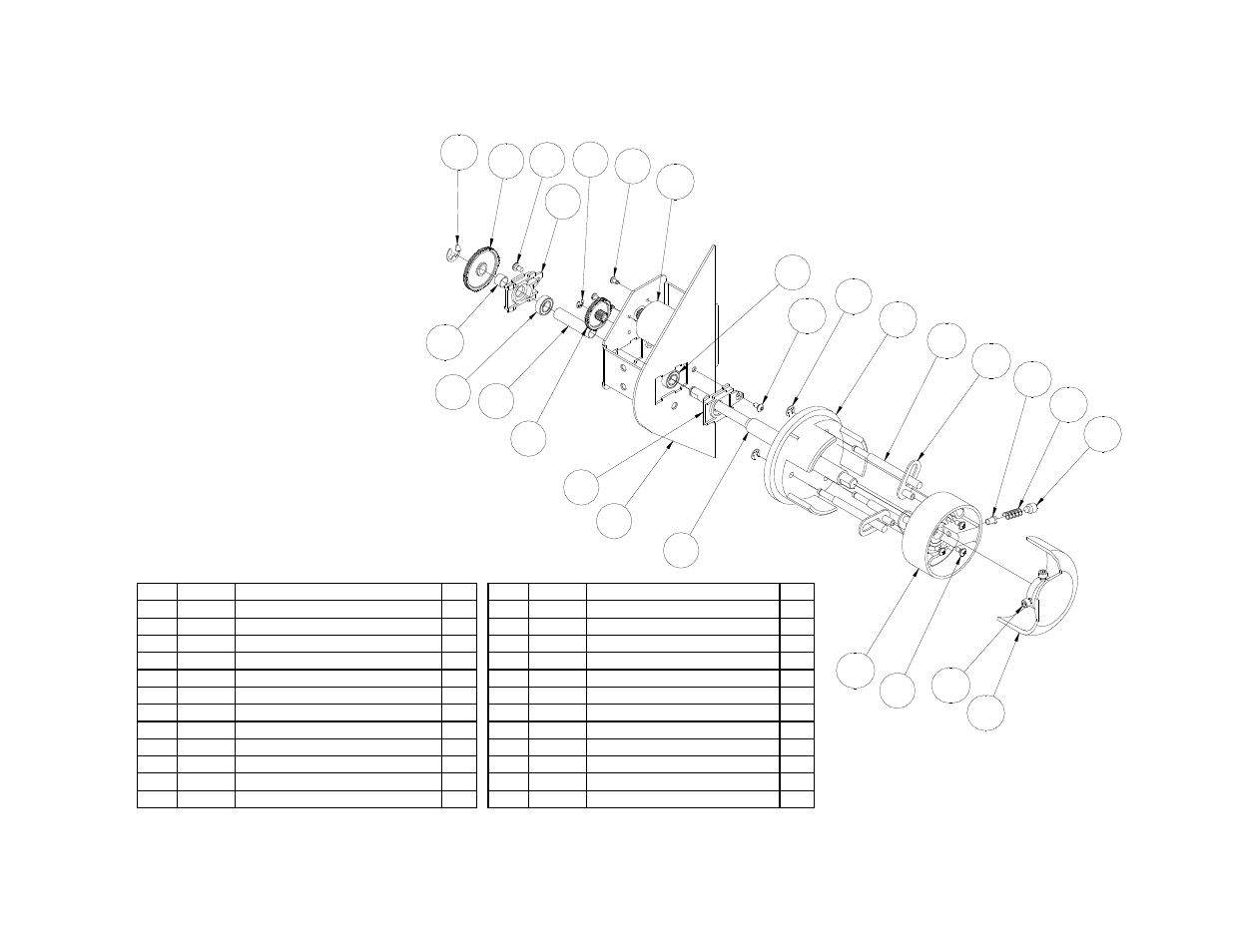

12.1 Unwind Assembly – Gen 1
Item Part #
Description
Qty Item Part #
Description
Qty
1
581201 Frame, Upright (reference only)
1
13
126468 Motor, Ribbon
1
2
118052 Holder, Bearing
2
14
989971 5/16 - 18 x 3/8 Set screw
1
3
117903 Bearing, Platen
2
15
583009 Drag plug, Unwind
1
4
117955 Gear, Ribbon, 54T - 15T
1
16
991443 Spring, Compression
1
5
991367 Snap ring, 9/64 e-ring
1
17
583006 Knob, Adjust, Unwind
1
6
991372 6-32 x 1/4 Pan head screw
4
18
990019 6-32 x 1/4 Button head screw
1
7
991368 2.5mm x 5mm Pan head screw
3
19
583003 Hub, Inner, Unwind
1
8
586005 Spacer, Ink arbor, Inner
1
20
583004 Shaft, Core locator
3
9
583007 Shaft, Unwind
1
21
990325 Snap ring, 3/16 e-ring
3
10
586004 Spacer, Ink arbor, Outer
1
22
583002 Hub, Outer, Unwind
1
11
117954 Gear, Ribbon, 75T
1
23
583005 Bracket, Core locator
3
12
990327 Snap ring, 5/16 e-ring
1
24
990052 8-32 x 1/2 Cap screw
2
