User’s Manual—SNAP™ 500 Gen 1 and Gen 2 114

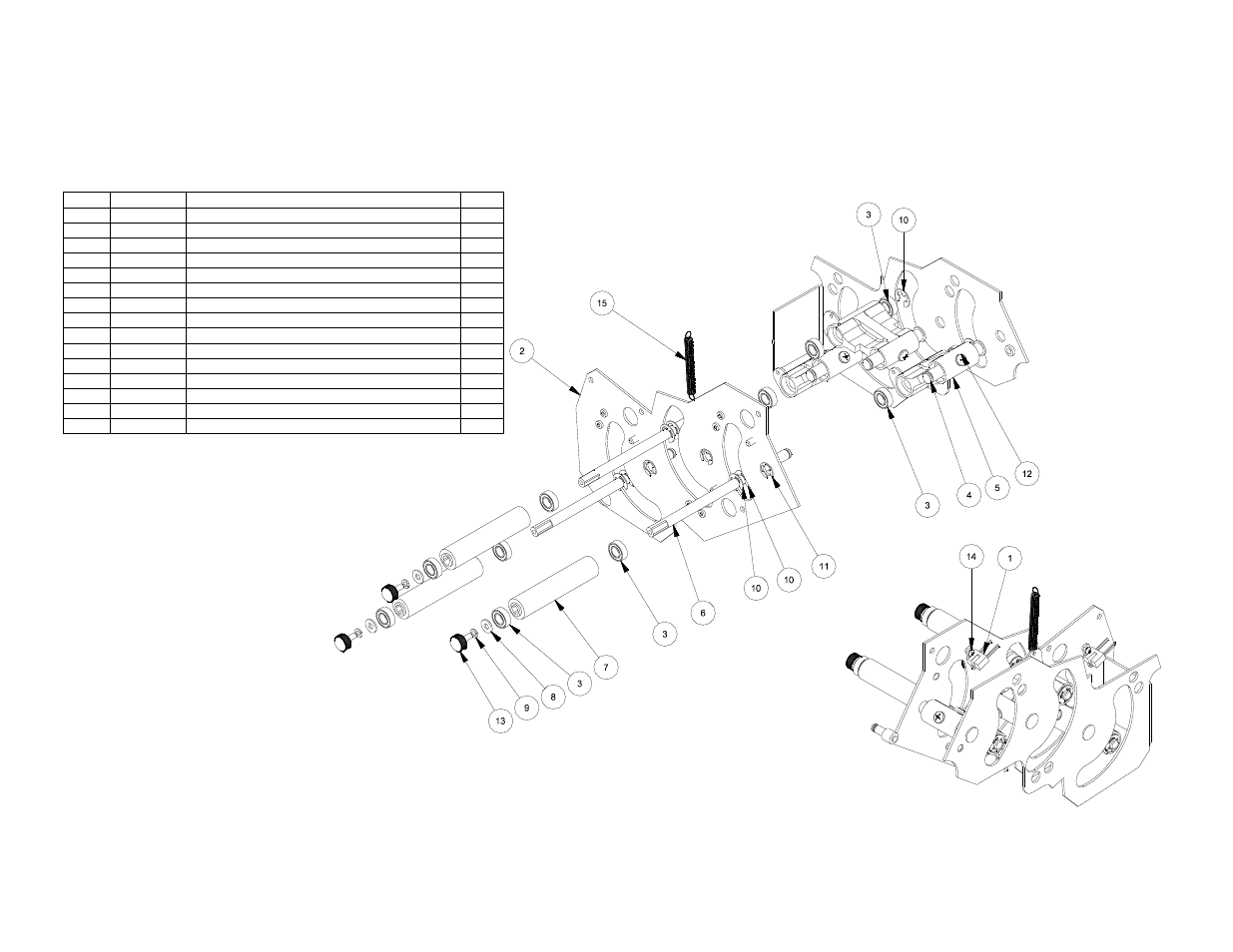

12.7 Swing Arm Assembly – Gen 2
ITEM PART NO. DESCRIPTION QTY
1 581130 SENSOR, OPTICAL SLOTTED, HARNESSED 3
2 631201 KIT, FRAME ASSEMBLY, SNAP 500 2/1 1
3 117903 BALL BEARING 12
4 585012 SHAFT, SWING BLOCK 3
5 585014 BRACKET, SWING ARM 3
6 595005 SHAFT, PLATEN ROLLER 3
7 595008 ROLLER, MOLDED PLATEN - GREEN 3
8 990067 WASHER, #8 SAE 3
9 990068 LOCK WASHER, #8 3
10 990327 E-RING, 5/16 9
11 990486 SNAP RING, 3/8 E-RING 3
12 991480 10-32 X 5/16 PHILLIPS PAN HEAD SCREW 3
13 991643 8-32 X 3/8 THUMB SCREW 3
14 991422 4-40 X 1/4 PHILLIPS PAN HEAD SCREW 6
15 991608 SPRING, EXTENSION 1
