Avery Dennison SNAP 500 - Manual (Page 120)

User’s Manual—SNAP™ 500 Gen 1 and Gen 2 120
1
2
18
22
19
23
6
13
16
15
4
17 14
12
18
17
15
25
3
20
21
5
11
7
8
10
9
24

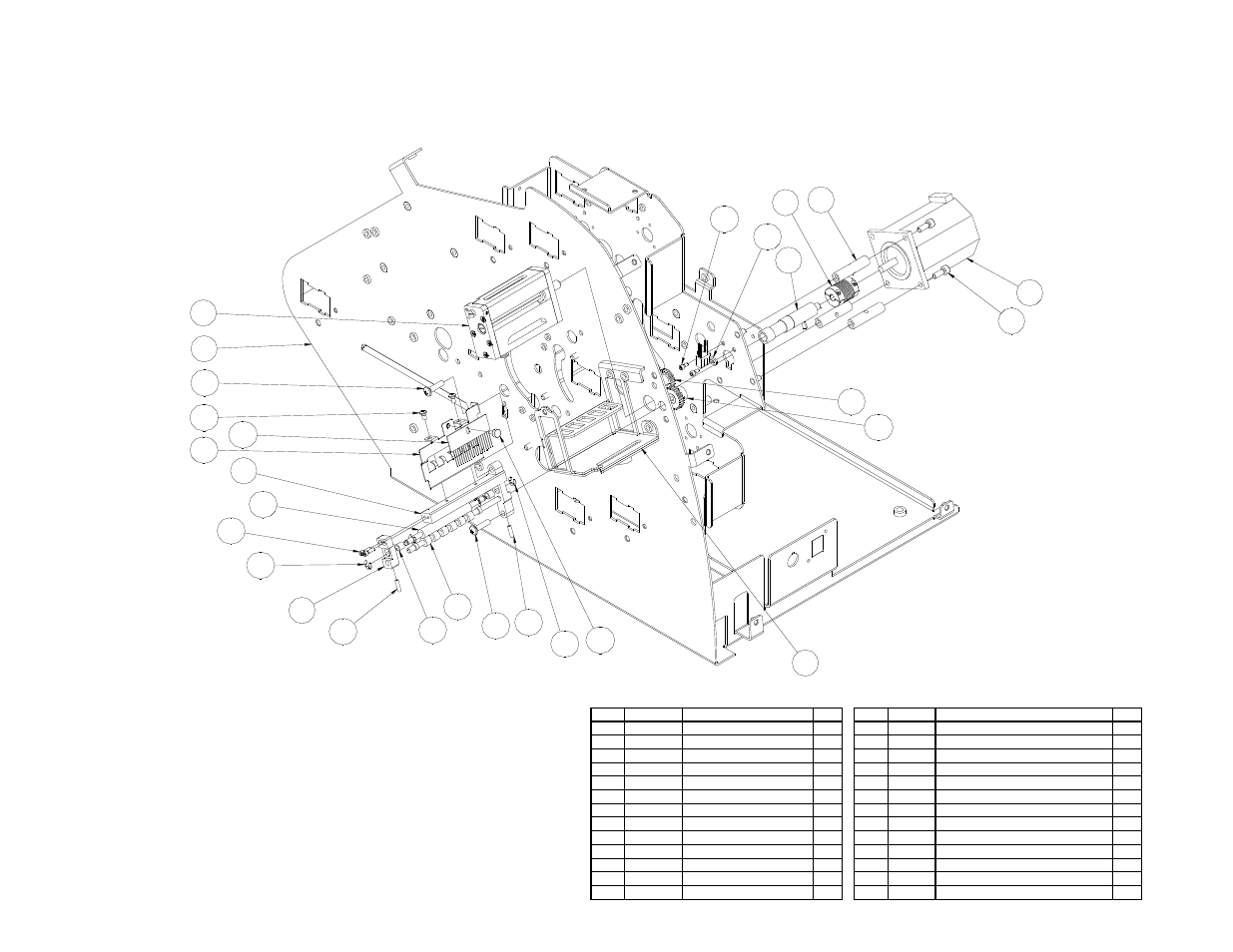

12.13 Knife – Drive – Nip Roller Assembly – Gen 1
*Recommended Spare Parts
Item Part # Description Qty Item Part # Description Qty
1 587090-1 Assembly, Knife 1 14 999165 Bushing, 3/16 x 1/4 x 1/4 2
2 581201 Frame, Upright 1 15 990325 Snap ring, 3/16 e-ring 4
3 584011 Frame, Knife / Drive 1 16 990424 4-40 x 3/8 Cap screw 2
4 584033 Bracket, Nip roller, Outer 1 17 991523 Spring, comp 500/600 nip ass’y 2
5 587017 Standoff, Knife motor 3 18 991377 10-32 x 3/4 Phillips PH Screw 2
6 584019 Bracket, Nip roller mount 1 19 588045 Bracket, Label stop, Rear 1
7 245026 Motor, Stepper 1 20 584028 Gear, Nip 26T, 32P 1
8 991438 Drive, Beam coupling 1 21 584027 Gear, Idler 22T, 32P 2
9 587018 Shaft, Knife drive 1 22 991372 6-32 x 1/4 Phillips pan head screw 2
10 581130 Sensor, Optical 1 23* 584034 Electrical, Static brush 1
11 990081 10-32 x 1/2 Cap screw 3 24 990006 4-40 x 1/4 Cap screw 2
12* 584015 Roller, Molded 1 25 991471 4-40 x 1/4 Thumb screw 1
13 584016 Roller, Nip, Idler 1
