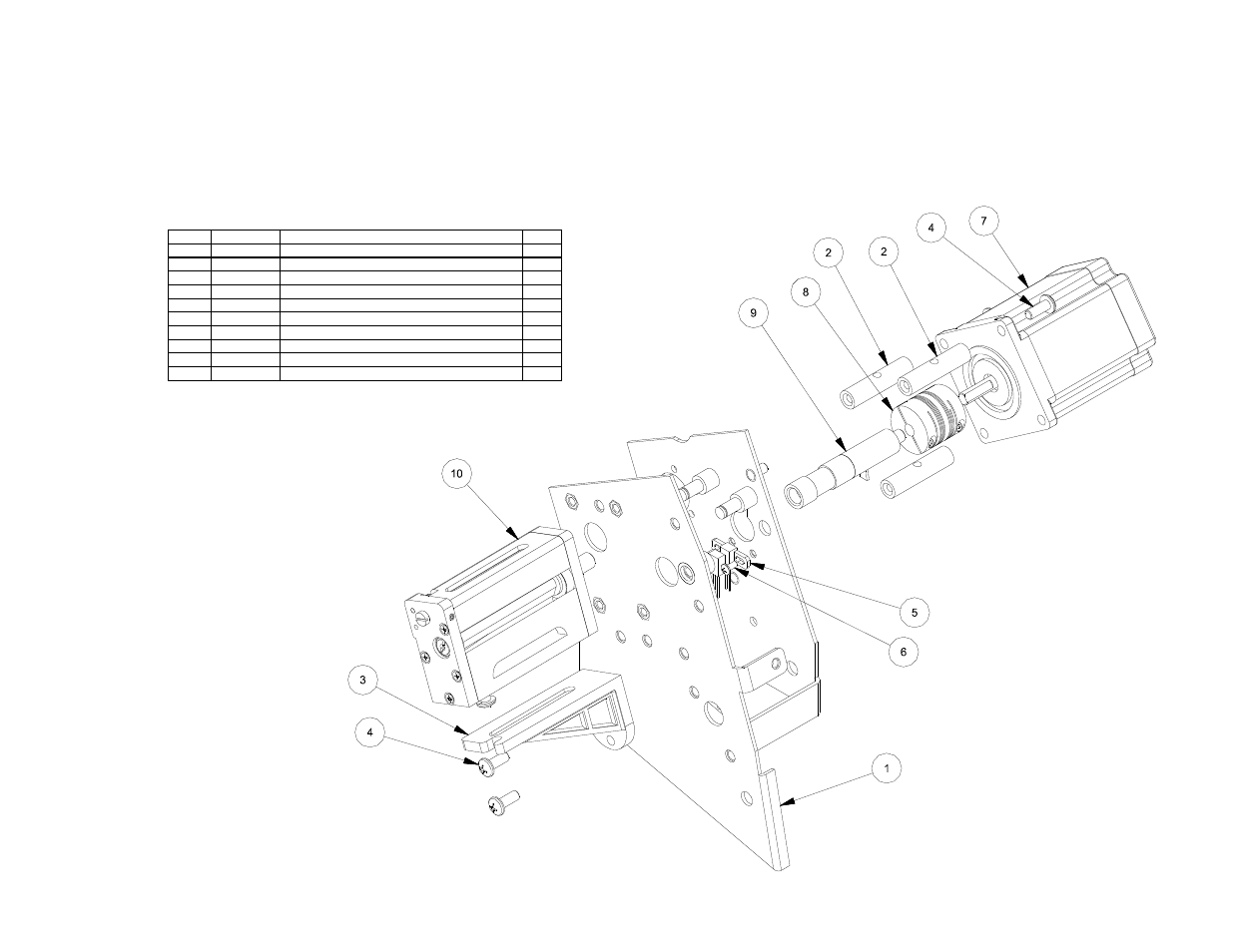

12.15 Knife Assembly – Gen 2
ITEM PART NO. DESCRIPTION QTY
1 631201 KIT, FRAME ASSEMBLY, SNAP 500 2/1 1
2 587017 STANDOFF, KNIFE MOTOR 3
3 637001 BRACKET, KNIFE 1
4 991376 10 SCREW, 10-32 X 1/2 PAN PHILLIPS 5
5 581130 SENOSR, OPTICAL SLOTTED, HARNESSED 1
6 989983 4-40 X 1/4 PHILLIPS PAN HEAD SCREW 2
7 245026 STEPPER MOTOR, HARNESSED 1
8 991642 DRIVE, BEAM COUPLING 1
9 637002 ASSY, KNIFE DRIVE SHAFT 1
10 587090-2 ASSEMBLY, KNIFE 1
