User’s Manual—SNAP™ 500 Gen 1 and Gen 2 110
6
2
1
5
4
13
9
3
12
10
10
7
11
14
8

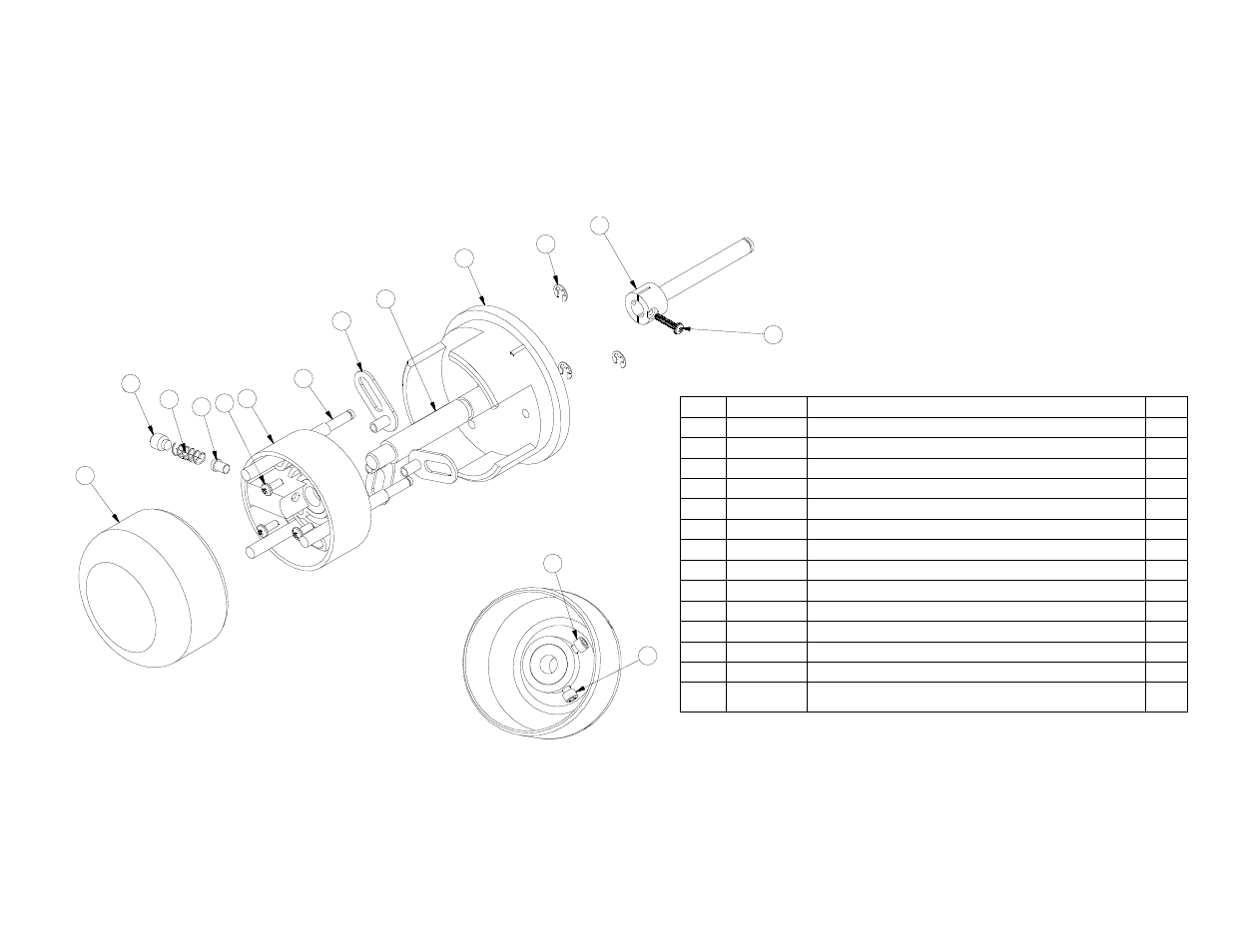

12.3 Unwind Assembly – Gen 2
Quick Attach Shaft Design – 2 Piece Shaft (New)
ITEM PART NO. DESCRIPTION QTY
1 583004 SHAFT, CORE LOCATOR 3
2 583005 BRACKET, CORE LOCATOR 3
3 583006 KNOB, UNWIND 1
4 583009 DRAG, PLUG 1
5 593002 HUB, OUTER, UNWIND, 600 1
6 593003 HUB, INNER, UNWIND, 600 1
7 634051 SHAFT, QUICK ATTACH UNWIND 1
8 634052 SHAFT, QUICK ATTACH UNWIND THREADED 1
9 989971 5/16-18 X 3/8 SET SCREW W/ HALF DOG TIP 1
10 990052 8-32 X 1/2 CAP SCREW 2
11 990325 SNAP RING, 3/16 "E" RING 3
12 991436 6-32 X 375 PHILLIPS PAN HEAD SCREW 3
13 991443 SPRING, COMPRESSION 1
14 996311
4 SCREW, 4-40 X 5/8 PPHS W/ EXT TOOTH LOCK
WASHER 1
