70
User’s Manual—SNAP™ 500 Gen 1 and Gen 2
7.4.2 Upgrading through PCMate
1. Once you have received the upgrade file through D2Comm, check that the UPG
file is in the “C:\D2Comm\Control\” folder.

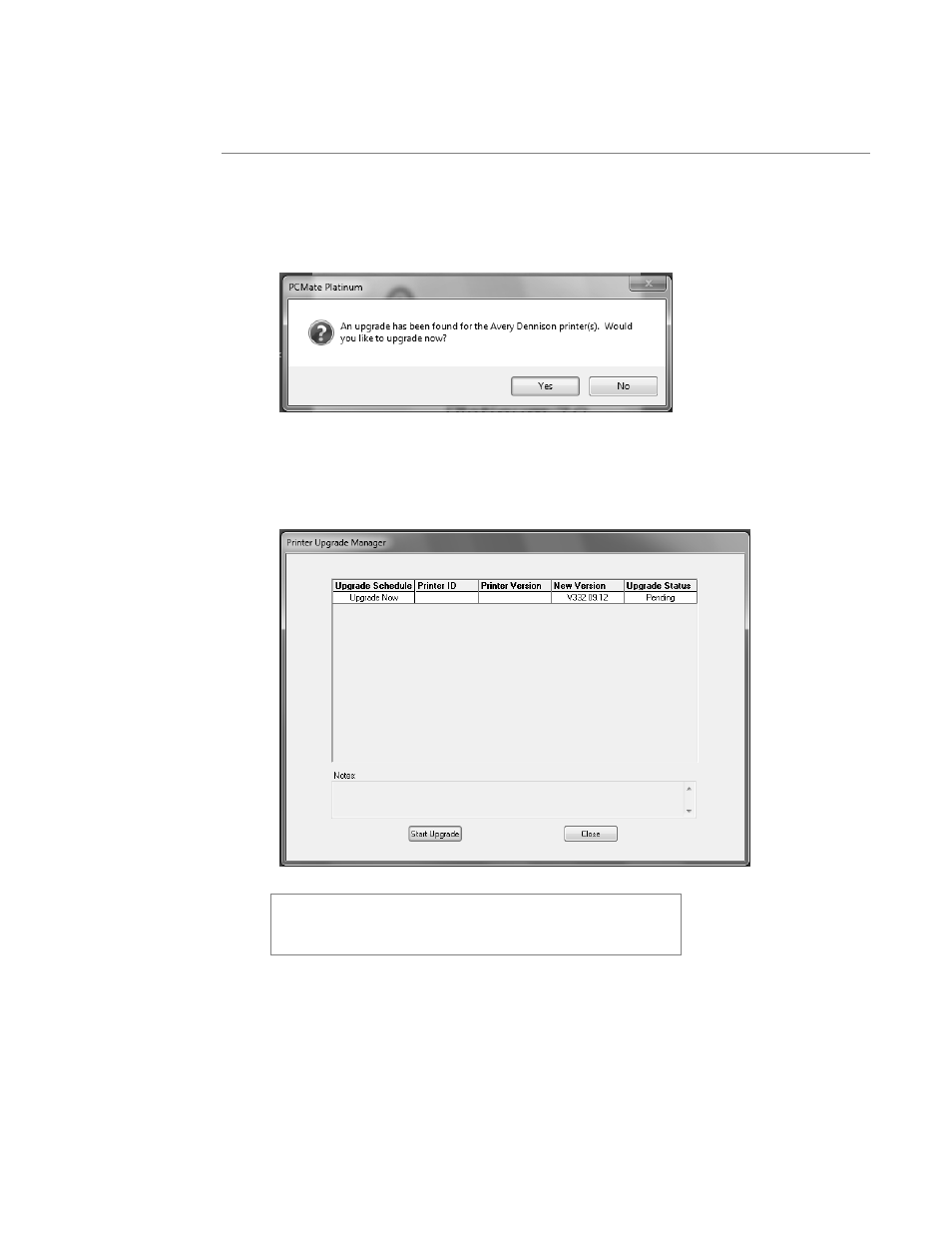

2. Start PCMate Platinum. The following screen will appear.
3. Click on the Yes button to start the upgrade. Clicking on the No button start
PCMate Platinum. Each time you start PCMate Platinum, this screen will
appear until you either perform the upgrade or remove it (see below).
4. When you click on the Yes button, the following screen will appear.
If you have more than one printer connected to the PC, they will
all show in this window. If you leave the Upgrade Schedule box at
Upgrade Now (see below), all the printers will be upgraded, one at
a time.
