User’s Manual—SNAP™ 500 Gen 1 and Gen 2 131
2
3
13
15
14
12
11
11
5
16
6
9 16
16
11
16
17
6
1
10
8
16
4

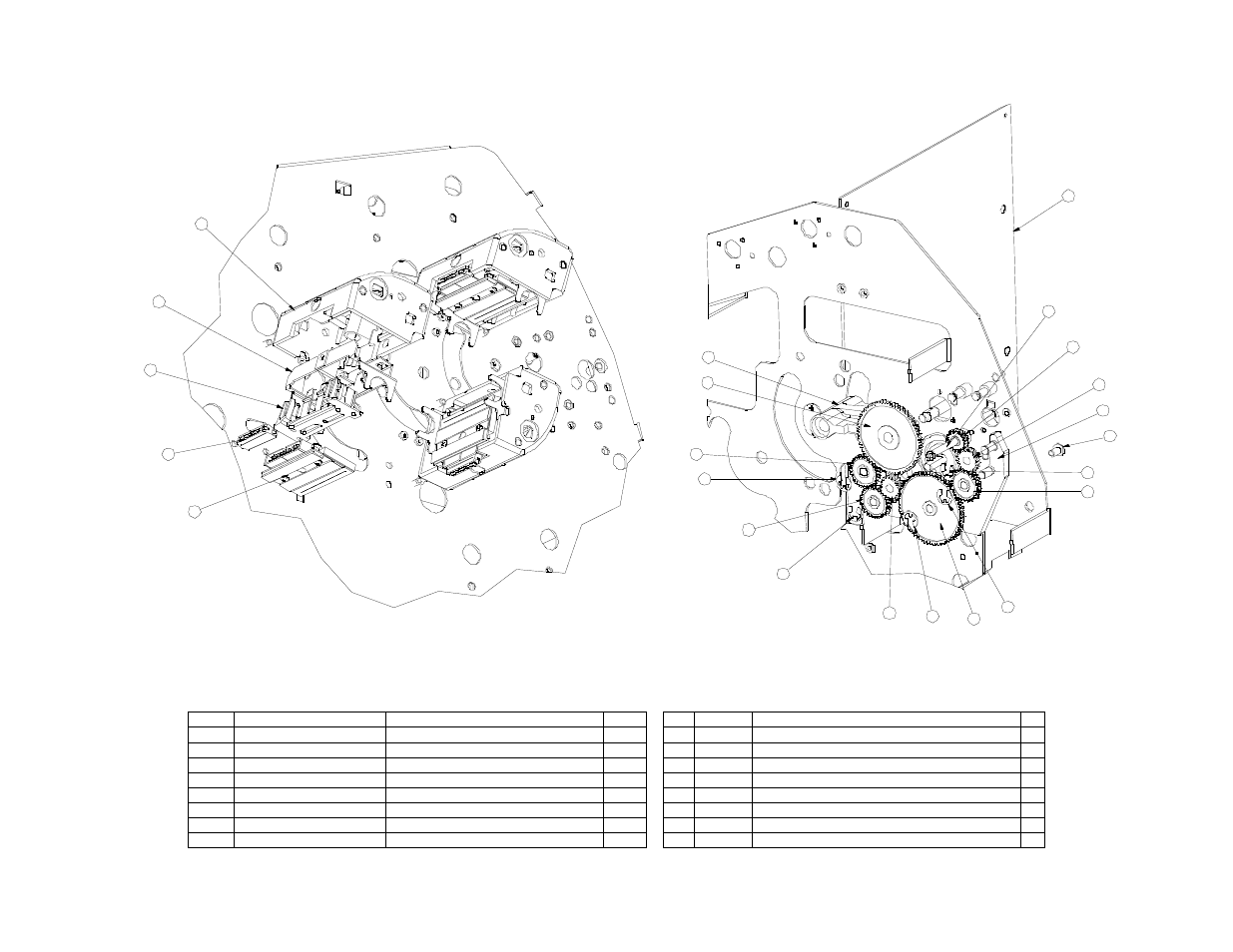

12.24 600DPI Machine Parts – Gen 2
** The SNAP printer is not convertible between 300DPI & 600DPI **
ITEM PART NO. DESCRIPTION QTY 9 634045 GEAR, 70T 600 DPI 1
1 584027 GEAR, IDLER 22T, 32P 1 10 634046 GEAR, 20T NIP SHAFT 600 DPI 1
2 591143 CABLE, PRINT HEAD 3 11 634050 GEAR, 30T 600 DPI 3
3 631102 PRINT HEAD, 600 DPI 3 12 635008 BRACKET, SWING ARM 600 DPI 1
4 631107 500 2_1 600DPI PCB, MCB 500 2/1 PROGRAMMED 1 13 635021 RETAINER, 600DPI PRINT HEAD 3
5 634028 GEAR, 70T 1 14 635022 MOUNT, PRINT HEAD 3
6 634030 BRACKET, 600DPI 1 15 635023 BRACKET, 600DPI PRINT HEAD MOUNT 3
7 634031 GEAR, 21T 1 16 990326 SNAP RING, 1/4" E-RING 5
8 634044 SHAFT, NIP DRIVE 600 DPI 1 17 991379 10-32 3/8 PHILLIPS PAN HEAD SCREW 2
