6.7 Control element
6 Wiring
6.7.5.9 Incremental encoder ROD (AquadB) 5 V, 350 kHz
Incremental encoder ROD (AquadB) 5 V, 350 kHz 6- ][Verdr_Leiterquerschnitte_Verweis
Under “Connection cables”, please note the requirements for the:
 Cable cross sections
 Insulation material
][Verdr_Geber_ROD_5_V_protego_D
With cable runs > 50 m, please speak to our Customer Support.

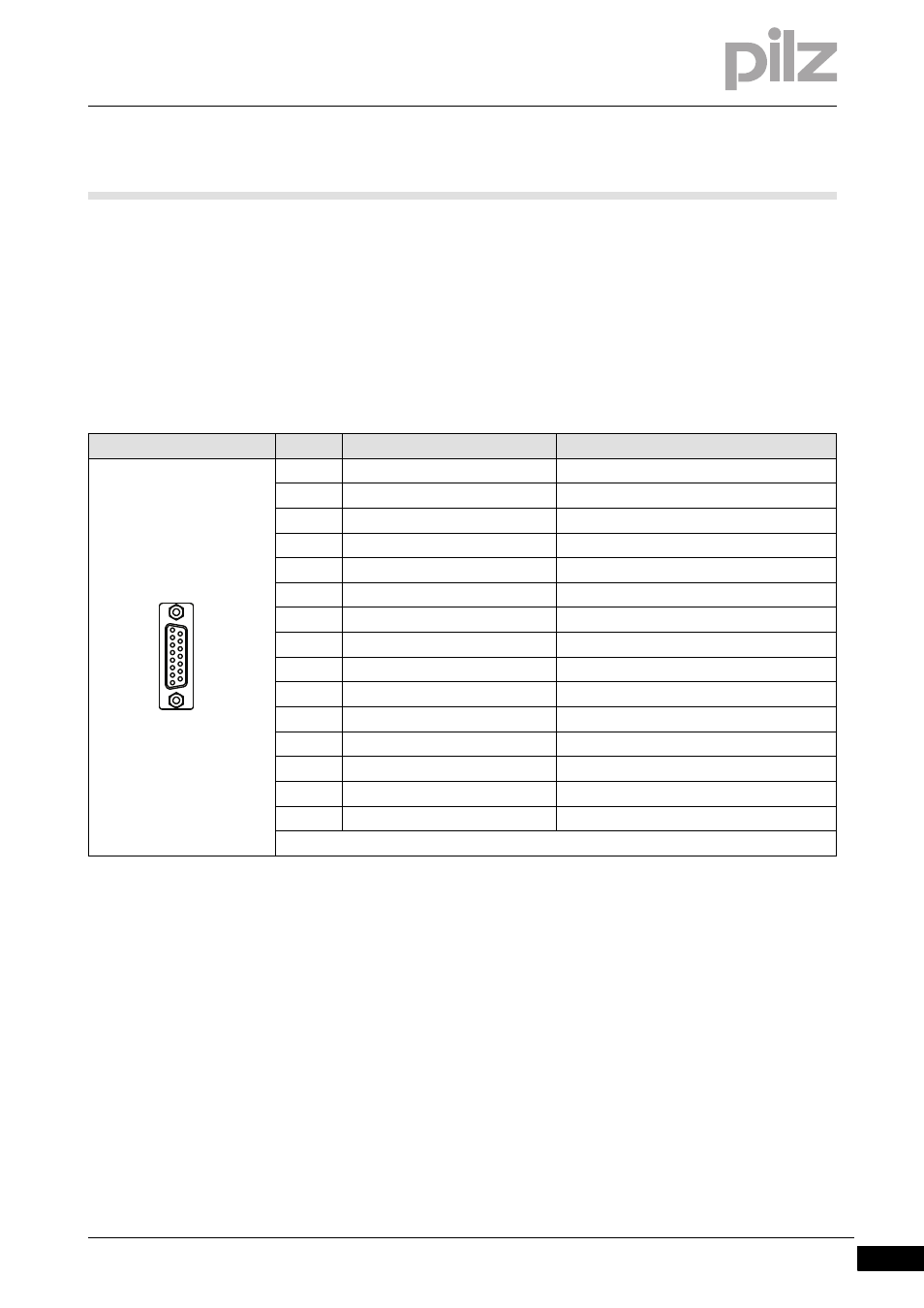

Connector pin assignment
Connector X1 Pin Designation Description
1 B Channel B
2 0 V Supply voltage 0 V
3 A Channel A
4 Up Supply voltage 5 V
5 Z Reference pulse
6 n. c. --
7
ϑ
Thermal switch
8 n. c. --
9 B\. Channel B inverted
10 Sense 0 V Supply voltage feedback 0 V
11 A\ Channel A inverted
12 Sense Up. Supply voltage feedback 5 V
13 Z\ Reference pulse inverted
14
ϑ
Thermal switch
15 n. c. --
n. c. = not connected
1
8
9
15
