3 • Basic Operation
Adjusting the HCEF Wedge
1. Insert an envelope into the HCEF with the bottom edge of the envelope
against the Center Guide, in line with the two screws. The top edge of
the envelope (edge with flap) should point towards the Wedge.
NOTE: Ensure the envelope is centered, not angled, on the Center Guide
to obtain correct positioning. If the position of the envelope is incorrect, the
Separator Gap adjustment will be incorrect as well.
2. Push up and release the blue Wedge Locking Lever.
3. Slide the Wedge toward the envelope, until the top edge of the envelope
fits into the center slot of the Wedge.
Loading the
DI950 HCEF
(continued)

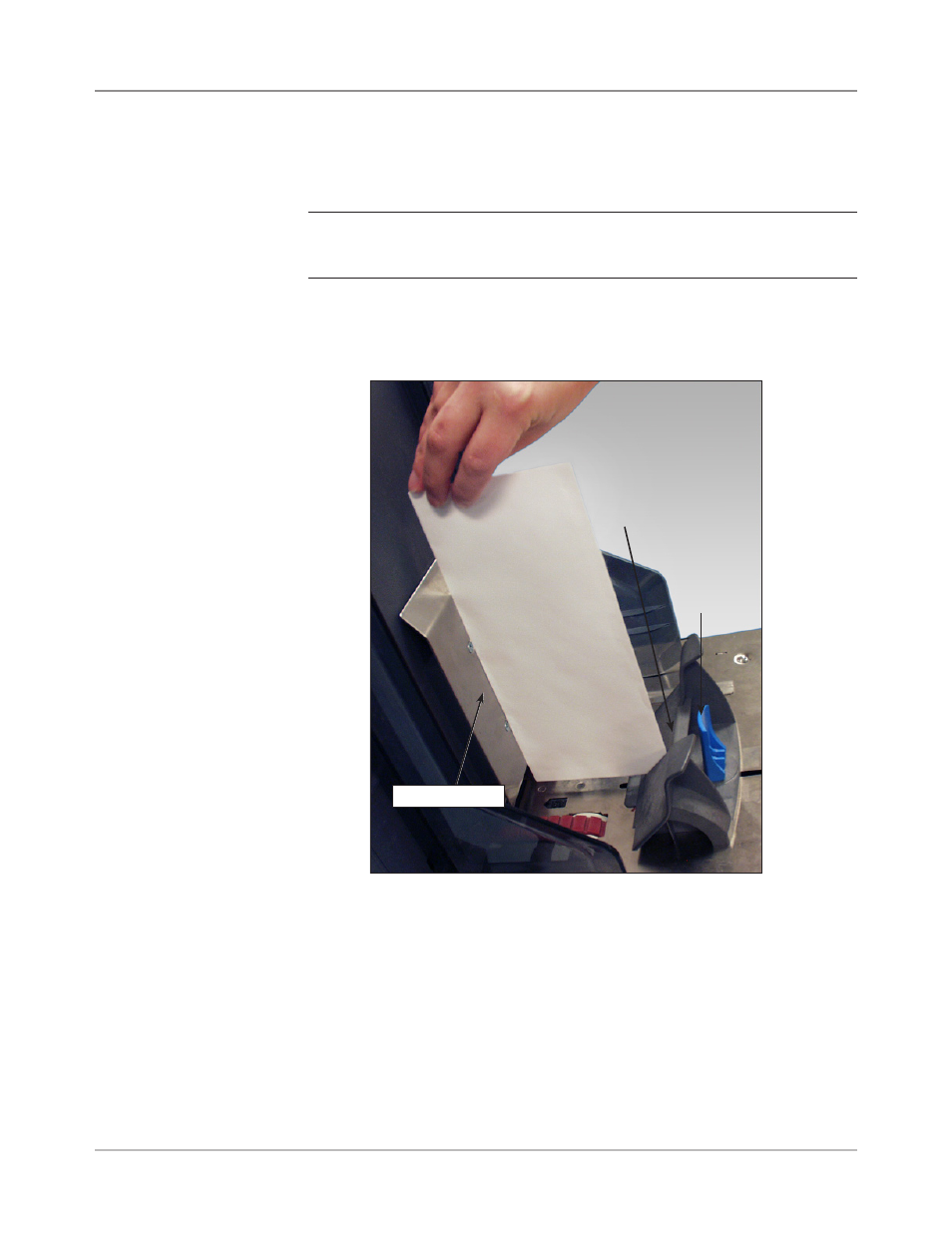

Figure 3.7.1: Adjusting the Wedge Position
Wedge
Locking
Lever
Wedge
Center Guide
