SV61311 Rev. E 7-3
Add-On Modules • 7
Each feeder in the HCSF holds up to 1000 sheets of 20 lb. (80 gsm) pa-
per. Refer to Chapter 6 for recommended specifications on other types and
weights of materials.
To load sheets into the HCSF:
1. After loosening the pages of the stack of sheets, turn the HCSF Tray
Side Guide Adjustor counterclockwise () to open the Tray wide enough
to accommodate the stack of sheets.
NOTE: The Side Guide Adjustor is located below the tray indicator letter.
Loading the
HCSF
2. Load approximately 1 inch of material into the Tray in the orientation
specified in the loading instructions on the Home screen. Green lights on
the front panel of the HCSF indicate that the material is loaded and that
the HCSF is operable.
3. Turn the Feeder Tray’s Side Guide Adjustor clockwise () until the side
guides touch the material, and then back off slightly.
TIPS:
• For collations of 20 to 25 pieces, back off one full revolution (approxi-
mately. 2.5 mm) of the Side Guide Adjustor.
• Turn clockwise to move in, counterclockwise to move out.

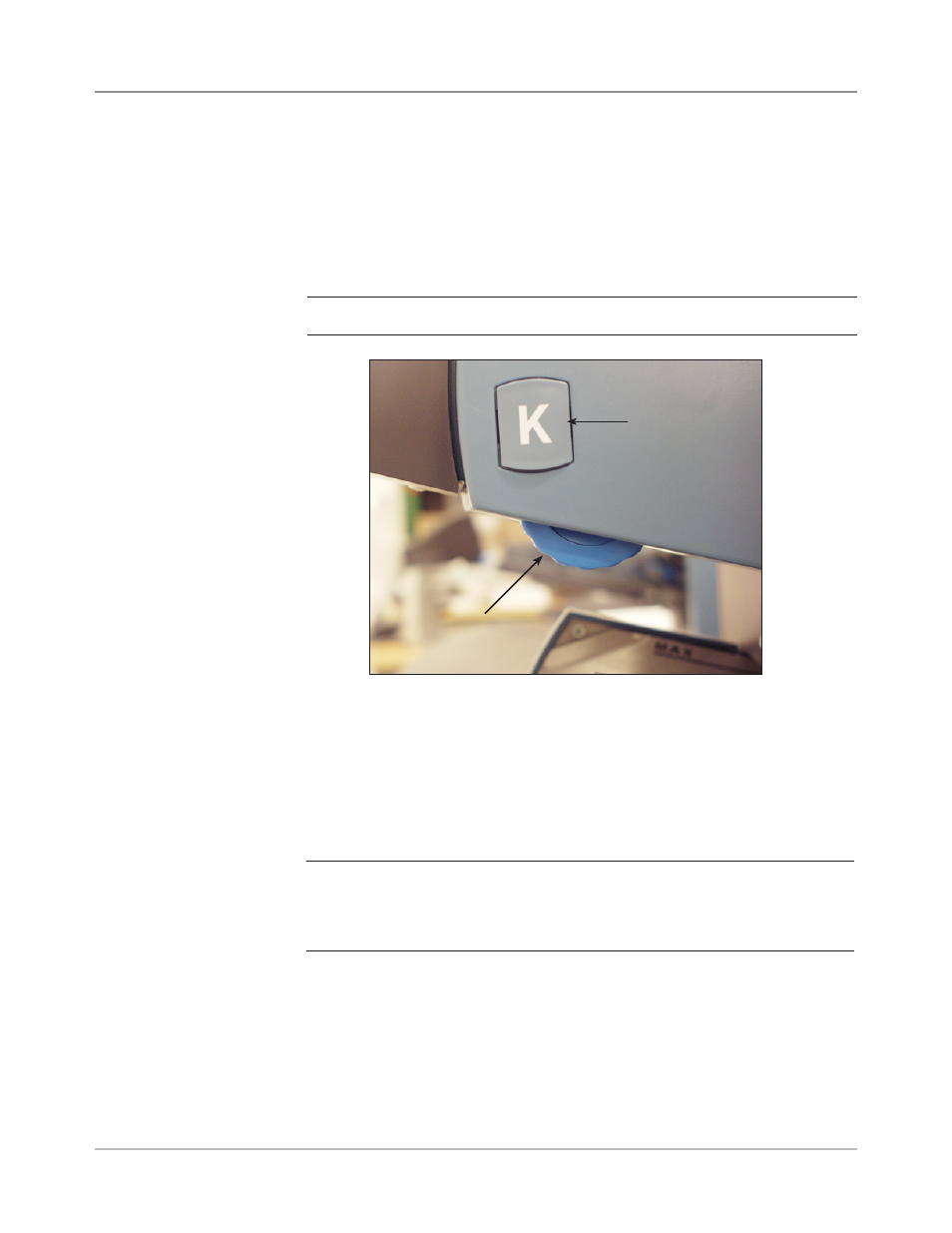

Figure 7.2: HSCF Side Guide Adjustor
HCSF Side
Guide Adjustor
Tray letter
indicator
