7. Determine the direction the Scan Head needs to be moved (to the left or
right of 0 on the ruler):
• Make sure the center of the sheet (the vertical fold) is lined up with
the at the center of the machine (at 0 on the ruler.)
• If the sheet is loaded Top First, make sure the arrows point DOWN.
• If the sheet is loaded Bottom First, make sure the arrows point UP.
8. Use the blue thumbwheel to move the Scan Head.
Blue thumbwheel

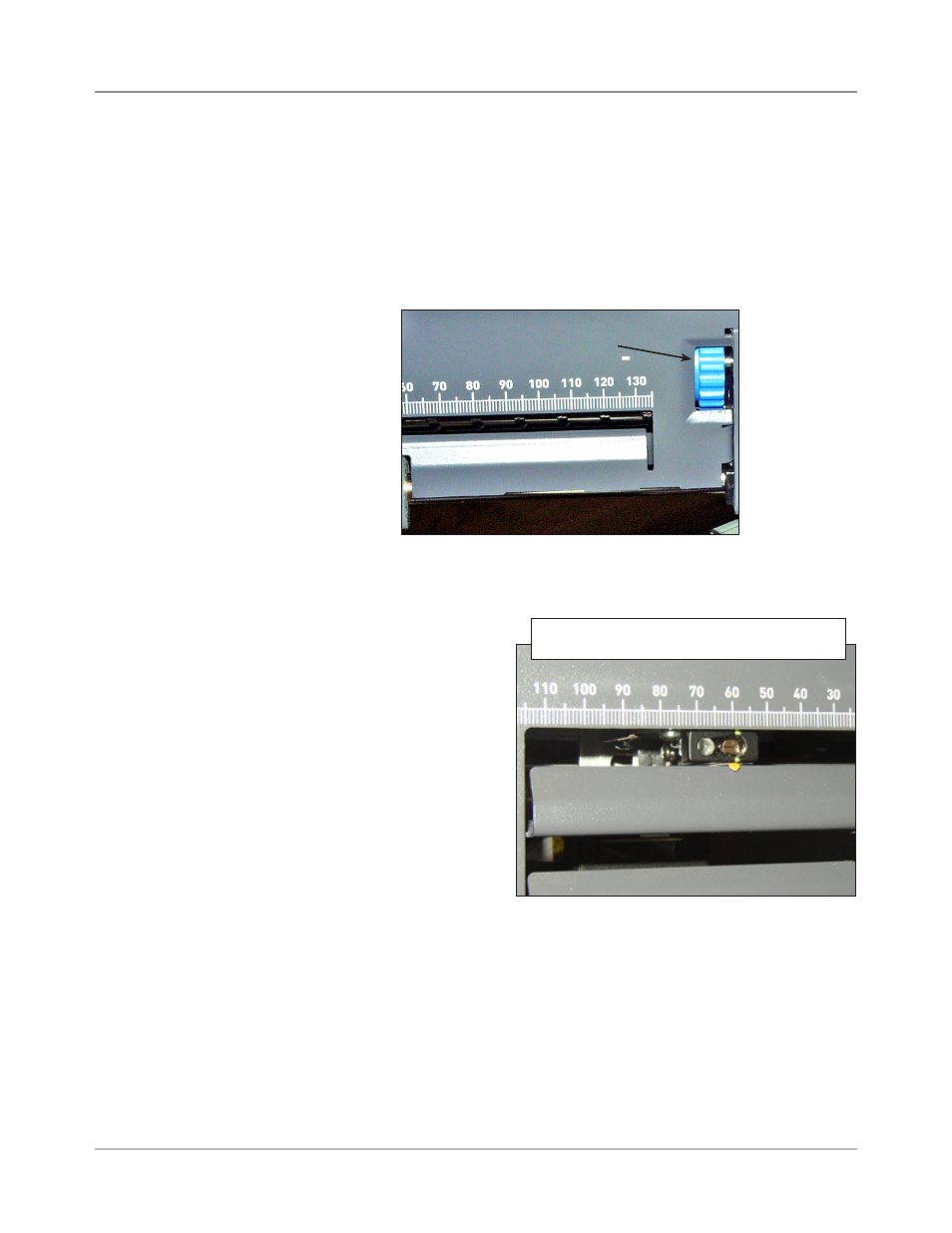

Figure 8.3: Use the Blue Thumbwheel to
Adjust Scan Head Position
Move the thumbwheel
until the pointer lines
up with the measure-
ment (distance from the
center of the page to the
center of the mark) de-
fined in Step 7.
9. If additional Scan Heads
are to be used, repeat
step 1 to 8 for each.
10. To verify the adjustment is correct:
a. From the home screen, select “Loading Instructions and Pre-Run
Adjustments” then “Scanner Setup”.
b. Use the UP/DOWN arrow keys to select a feeder to run.
c. Press TRIAL PIECE to feed a piece from the highlighted feeder.
d. Select “Finish” when done.
Adjusting the
Scan Heads
for Picket
Orientation
Marks
(continued)
Figure 8.4: Use the Pointer to Ensure Correct
Scan Head Position
Move thumbwheel until pointer lines up
with the distance measured in Step 4.
