3. Slide the Tray into the tray mounts until you feel the Tray seat into place.
NOTE: The Tray is seated properly when the notch on the bottom of each
side of the Tray is seated in the groove on each of the tray mounts.
4. Pull straight back on the Tray slightly, and at the angle at which the Tray
sits, to ensure it is securely attached. If it isn’t, repeat the procedure until
the Tray seats properly and securely.

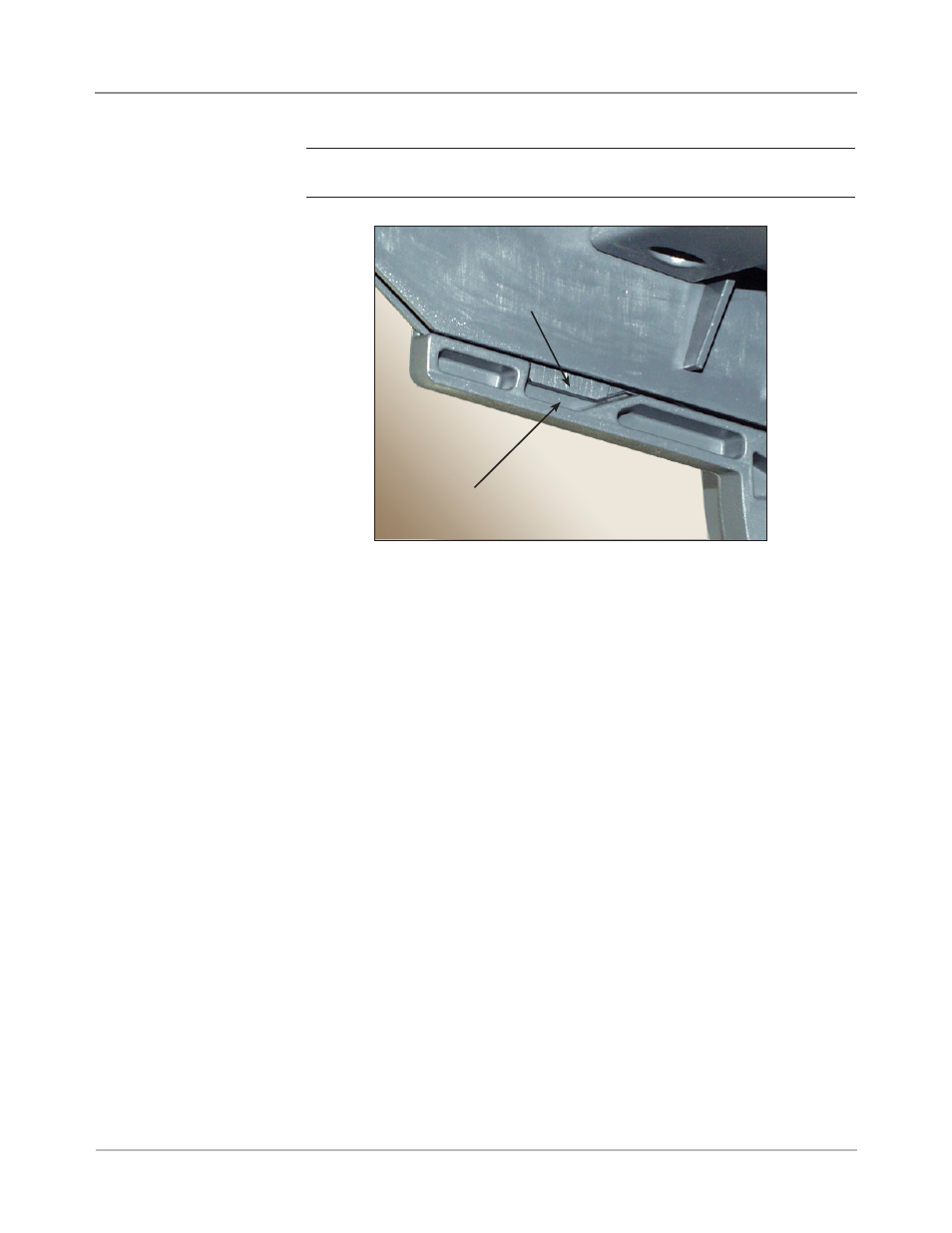

Figure 3.1.2: Check Tray Seating
Figure 3.1.2: Tray Seated Properly in Tray Mount
(Bottom View)
Notch on Tray
Groove on
tray mount
Removing Trays
from the Feeder
Tower
The procedure for removing a Sheet or Insert Tray consists of the following:
1. Grasp the open end of the Tray and lift up.
2. Slide the Tray out until it clears the grooves in the tray mount.
