Basic Operation • 3
The HCEF holds up to 500 envelopes. Refer to Chapter 6, Reference for the
envelope size ranges.
To load envelopes into the HCEF, you will need to adjust the Side Guides,
Wedge, and Separator Gap. Before you begin making any adjustments, fan
a stack of envelopes and remove any that are nested, curled, or damaged in
any way.
NOTE: To view a demo of the Wedge (wedge) and Separator Gap adjustment
processes, go to the Home screen. Select “Loading Instructions and Pre-Run
Adjustments”. Use the UP/DOWN arrow keys to select the envelope being fed by
the HCEF, then select “Feeders Setup Demo”.
Adjusting the HCEF Side Guides
1. Place an envelope between the Side Guides.
2. Using the Adjustor knob, bring the Side Guides in to lightly touch the en-
velope.
3. Release the knob. The Guides will spring back to the correct position to
allow free sliding of the envelope between the Side Guides.
NOTE: Side Guides only spring back after they are moved inward.
4. Make sure the envelope slides freely between the Side Guides when it is
placed flat on the red feed belts.
Loading the
DI950 High
Capacity
Envelope Feeder
(HCEF)

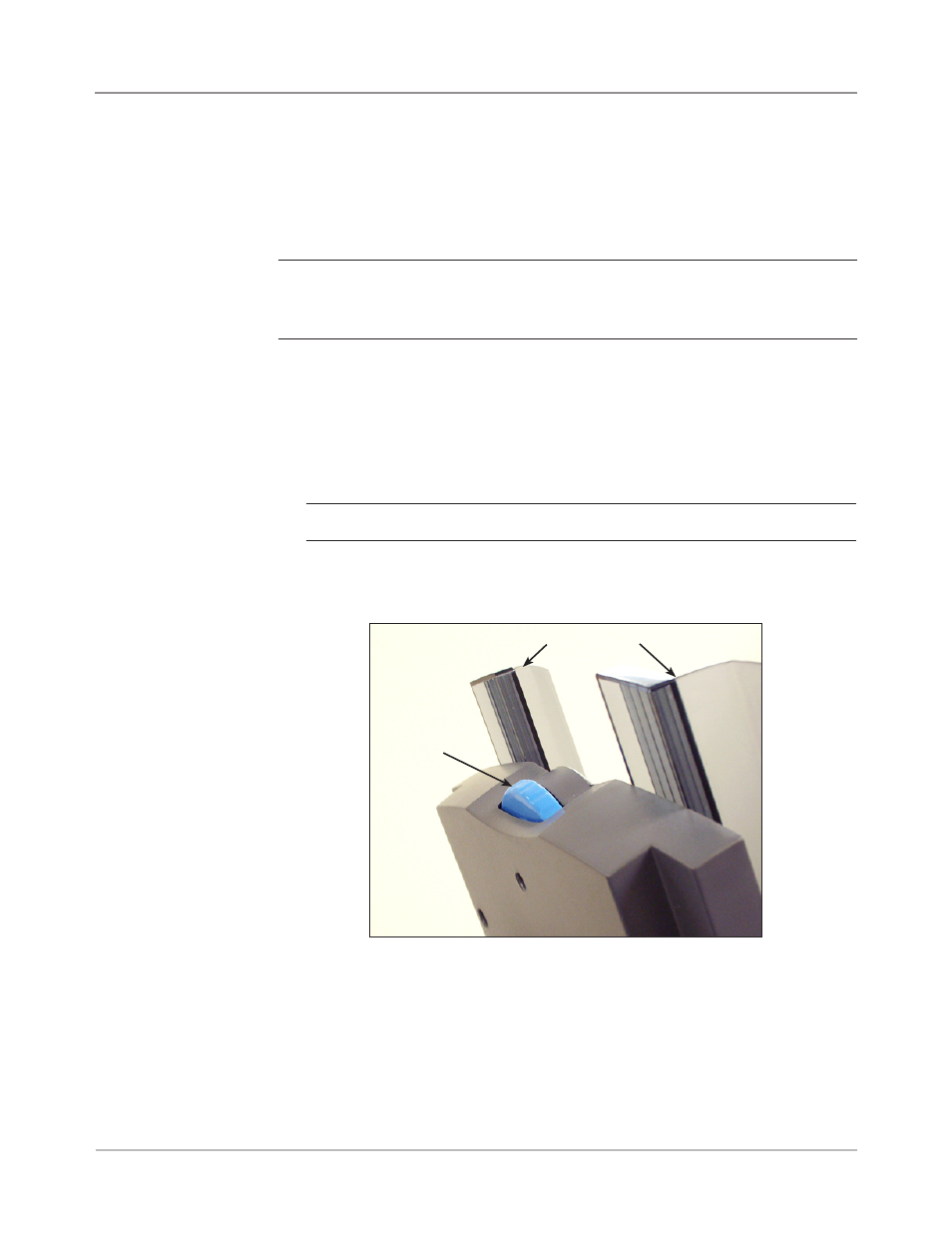

Figure 3.6: Adjusting the HCEF Side Guides
Side Guides
Adjustor
