7-6 SV61311 Rev. E
7 • Add-On Modules
5. Set the Length Guide:
a. Pull the length knob (knob 12) straight out.
b. Turn the knob to position yellow line on the Length Guide Bar at the
trailing end of the sheet.
Adjusting the
HCSF Guides
(continued)
Yellow line on
Length Guide
Bar

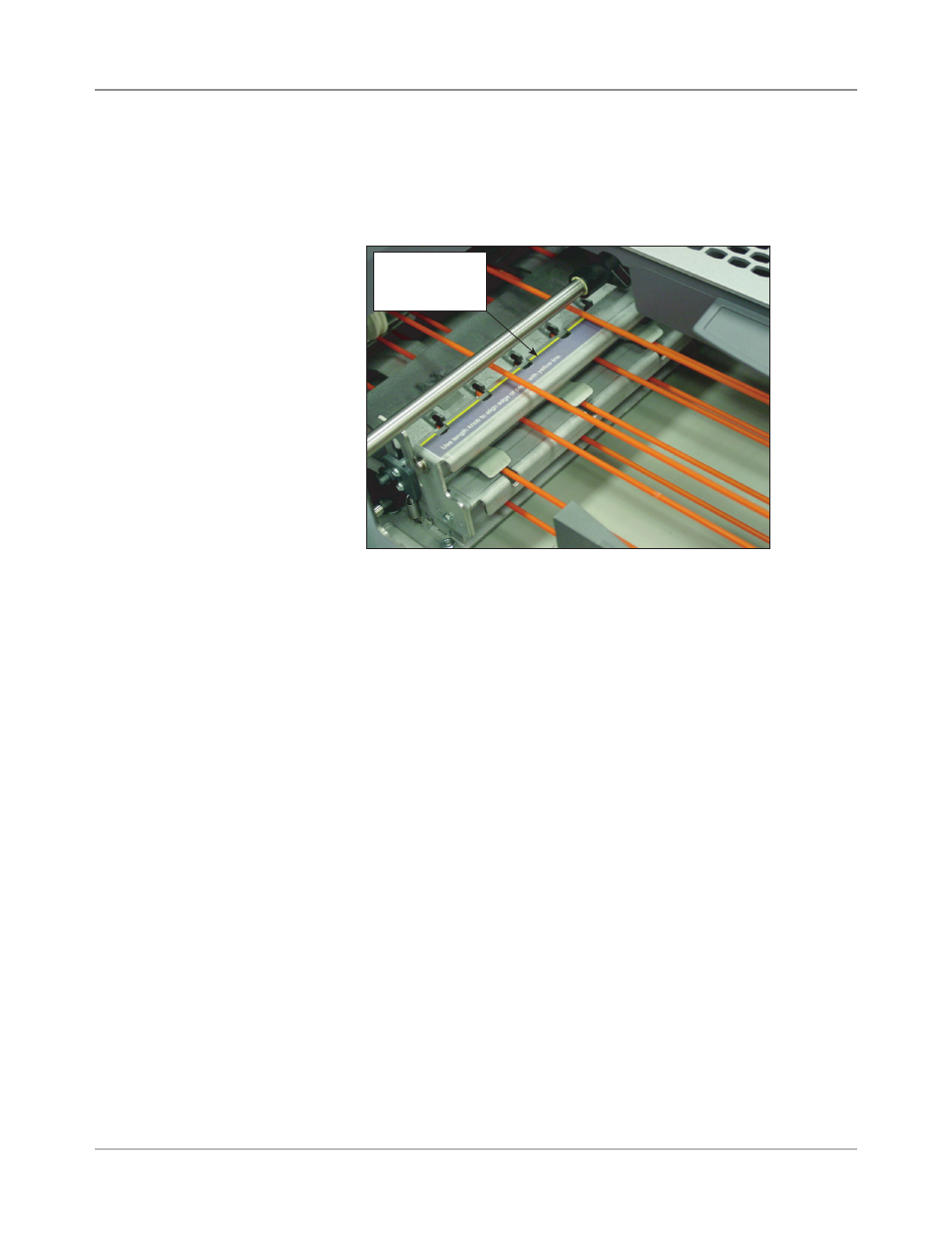

Figure 7.7: Length Guide Bar
c. Release the length knob once the Length Guide is properly placed.
6. Set the Width Guides:
a. Turn the right-hand knob on the side of the sheet transport to move
the Width Guides.
b. Move the Width Guides until they just make contact with the sides
of the sheet, then back off slightly (approximately. 1/3 of a turn). The
sheet should lay flat, and not buckle.
7. Close the front and top covers of the HCSF accumulation area.
8. Press CLEAR DECK to remove any material in the paper paths.
9. Repeat steps 3 to 8 to adjust the length and width guides until the sheet
aligns properly.
10. Repeat the entire procedure for each additional HCSF on your system.
